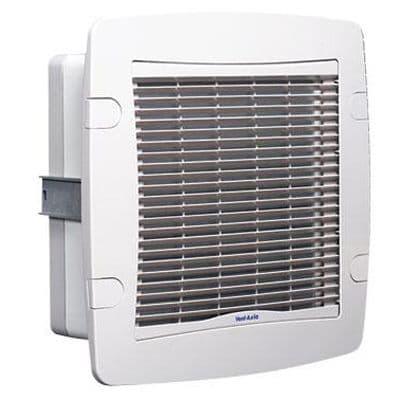

Vent Axia TX6PL 150mm 6 Inch Commercial Panel Fan

Overview

Vent Axia W161610 TX6PL commercial panel fan is considered by many professionals as the best commercial fan range available. It is part of the T series and is designed for use in commercial and light industrial environments, where extended periods of use are common.

The W161610 TX6PL model is a six inch extractor fan with 150mm spigot and impeller, specifically for panel installation. It features an integral automatic shutter that operates on both intake and extract and may be set to 'open' when the motor is off, providing the same natural ventilation as an open window without the security risk.

Offering 435m3/hr extraction rate, the TX6PL is considerably more powerful than standard domestic 6 inch axial fans. Robust and totally reliable, it will offer years of trouble-free service.

Key Features

• Fitted with Standard Thermal Overload Protection (S.T.O.P)
• Concealed integral instantaneous automatic louvre shutter
• Easy fit connector Top Socket
• Easy Cleaning without the need to use specialist tools
• Suitable for operation in ambient temperatures from -40 °C to +50 °C

Specification

• Airflow Cubic Meters Per Hour: 295 / 380 / 435 m ³/h
• Airflow Litres Per Second: 81 / 105 / 120 l/s
• Noise: 41dB[A] @ 3 m
• Power Rating: 30W
• Enclosure: Plastic
• Colour: Grey
• Type: Commercial 6 Inch Panel Fan
• Dimensions: (H)303 mm x (W)310 mm x (D)149 mm
• Brand: Vent Axia
• Range: T Series
• MPN: W161610
• EAN: 5015135425746
