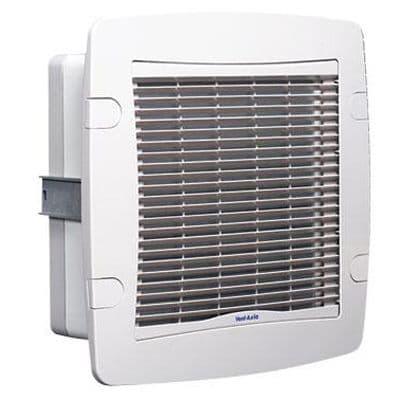

Vent Axia TX12PL 300mm 12 Inch Commercial Panel Fan

Overview

Vent Axia TX12PL is a nine inch commercial panel fan. This fan is part of Vent Axia T Series range of high performance and rugged extractor fans designed for use in a wide range of light industrial and commercial environments. Extremely reliable and durable over long periods of extended use, as is common in non-domestic situations, the T series is regarded by many ventilation experts as the best commercial extractor fan in the UK.

The TX12PL boasts an integral automatic shutter which operates on both intake and extract and may be set to 'open' when the motor is off, providing the same natural ventilation as an open window without the security risk.

Key Features

• Fitted with Standard Thermal Overload Protection (S.T.O.P)
• Concealed integral instantaneous automatic louvre shutter
• Easy fit connector Top Socket
• Easy Cleaning without the need to use specialist tools
• Suitable for operation in ambient temperatures from -40 °C to +50 °C

Specification

• Airflow Cubic Meters Per Hour: 1270 / 1640 / 1885 m ³/h
• Airflow Litres Per Second: 353 / 456 / 524 l/s
• Noise: 44dB[A] @ 3 m
• Power Rating: 105W
• Enclosure: Plastic
• Colour: Grey
• Type: Commercial 12 Inch Panel Fan
• Dimensions: (H)467 mm x (W)470 mm x (D)193 mm
• Brand: Vent Axia
• Range: T Series
• MPN: W164610
• EAN: 5015135425869
