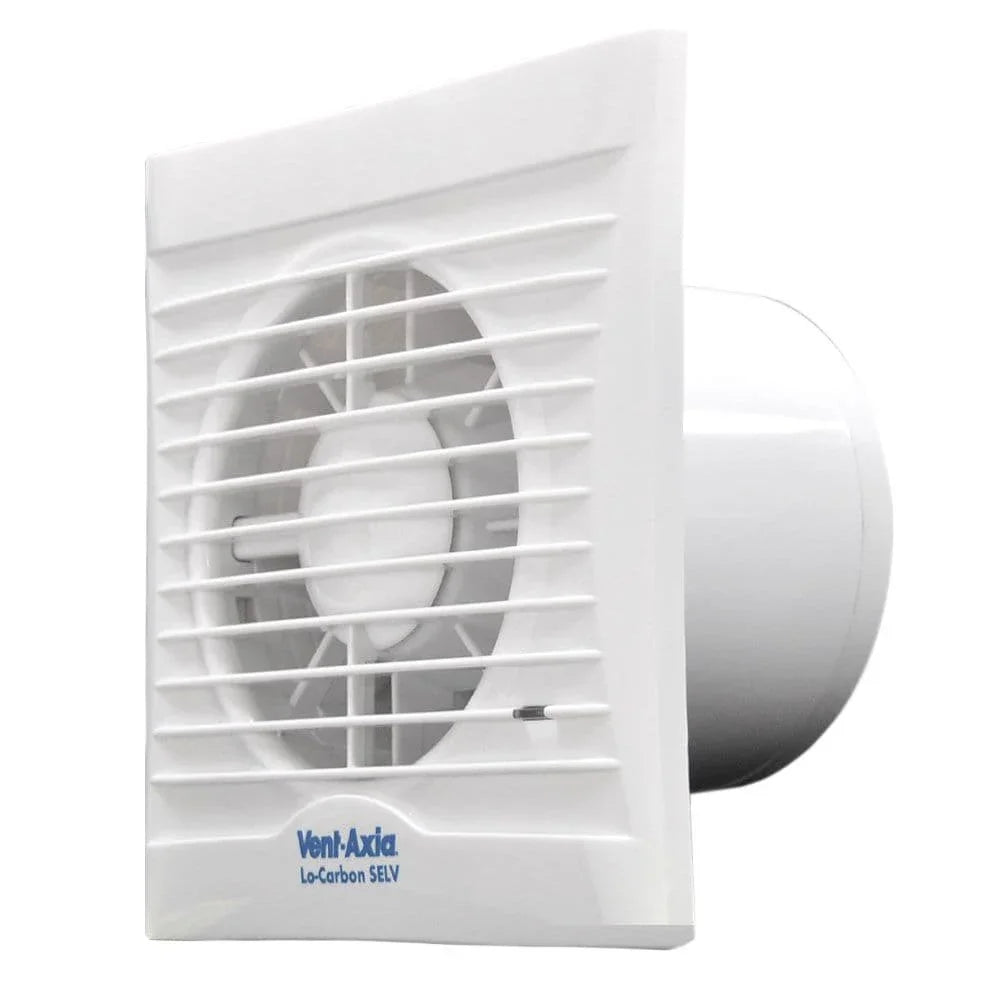

Vent Axia Lo-Carbon Silhouette SELV 100SVT Bathroom Extractor Fan with Timer 441512

Overview

The Vent Axia Lo-Carbon Silhouette SELV 100SVT is a slimline, 4-inch/100mm bathroom/toilet fan with integral adjustable electronic overrun timer (5-30 minutes), indicator light which operates on manual override only, and back draught shutter. It boasts an airflow of up to 108m³/hr and, with a chamfered profile of only 17mm, the Silhouette blends in with the wall surface to provide an unobtrusive installation. It can be ceiling/panel mounted and connected to an appropriate duct run to the outside.

Safety Extra Low Voltage (SELV) is designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV can be safely installed within the spray area. The fan is rated IPX7, control is by the supplied mains safety isolating transformer with 12V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower. SELV transformer to BS EN 60742.

Key Features

• 17mm stylish ultra low profile grille
• Blends in with the wall surface to provide an unobtrusive installation
• Low power consumption
• Lower running costs
• Fully opening and closing non-transparent shutters - Improved insulation and privacy
• 2 selectable speeds at installation
• Blue power indication light (except B model) - Modern aesthetics
• Ball bearing motors for vertical or horizontal application
• Suitable for wall, ceiling, panel and window mounting
• IPX4 rated - IPX7 rated (SELV)
• Unique humidity sensor track - Improved response
• 5 Year Motor Guarantee

Specification

Bathroom - Higher Setting

• Air Extraction m3/hr: 108
• Air Extraction l/s: 30
• Noise: 38dB(A)@3m
• Wattage: 8.7W

Toilet - Lower Setting

• Air Extraction m3/hr: 60
• Air Extraction l/s: 17
• Noise: 34dB(A)@3m
• Wattage: 3.4W

2 Years
