Vent Axia ESR63034 Euro Series Roof Fan 630mm Three Phase 4 Pole

Size: 630mm
Air Movement: 4.49m3/s
Noise: 64dB(A)
Three Phase
4 Pole
Wattage: 1.9kw
Amps: 14
RPM: 1360

The Vent Axia ESR63034 630mm three phase, 4 pole Euro Series roof fan is designed for either kerb or purlin box mounting on a flat or inclined roof with a mximum pitch angle of 30 °.

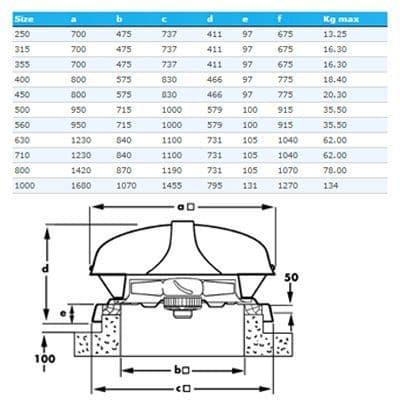

- If Kerb mounting, cross-sectional views must be adhered to when constructing the hardwood kerb.
- The plate fan should be secured inside the kerb with 4 off M12 coach screws (not supplied).
- The roof cowl must be secured to the kerb with the 8 off coach screws used to secure it to the pallet.
- If you intend on mounting on a purlin box, the roof cowl must be secured to the purlin box using 8-off M10 bolts (not supplied) and drilling the roof cowl to suit.
- Purlin trimmers (not supplied) will need to be fitted between the roof purlins in order to support the purlin box.
- The plate fan fits inside the purlin box on the 4 x corner fillets, and should be secured using 4 off M10 nuts and bolts (not supplied).
