Vent Axia ESR25012 Euro Series Roof Fan 250mm Single Phase 2 Pole

Size: 250mm
Air Movement: 0.28m3/s
Noise: 59dB(A)
Single Phase
2 Pole
Wattage: 0.14kw
Amps: 1.15
RPM: 2440

The Vent Axia ESR25012 (single phase, 2 pole) Euro Series roof fan is designed for either kerb or purlin box mounting on a flat or inclined roof with a mximum pitch angle of 30°.

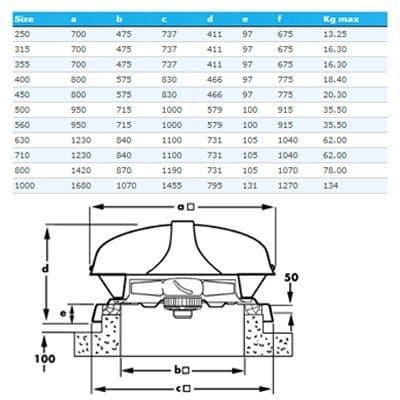

- If Kerb mounting, cross-sectional views must be adhered to when constructing the hardwood kerb.
- The plate fan should be secured inside the kerb with 4 off M12 coach screws (not supplied).
- The roof cowl must be secured to the kerb with the 8 off coach screws used to secure it to the pallet.
- If you intend on mounting on a purlin box, the roof cowl must be secured to the purlin box using 8-off M10 bolts (not supplied) and drilling the roof cowl to suit.
- Purlin trimmers (not supplied) will need to be fitted between the roof purlins in order to support the purlin box.
- The plate fan fits inside the purlin box on the 4 x corner fillets, and should be secured using 4 off M10 nuts and bolts (not supplied).
