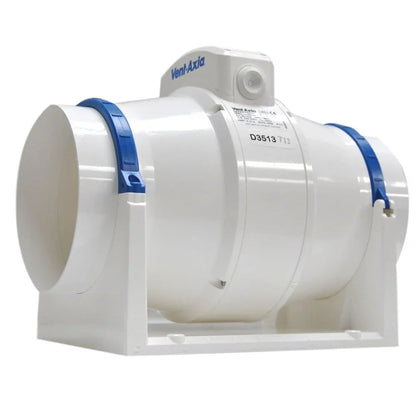

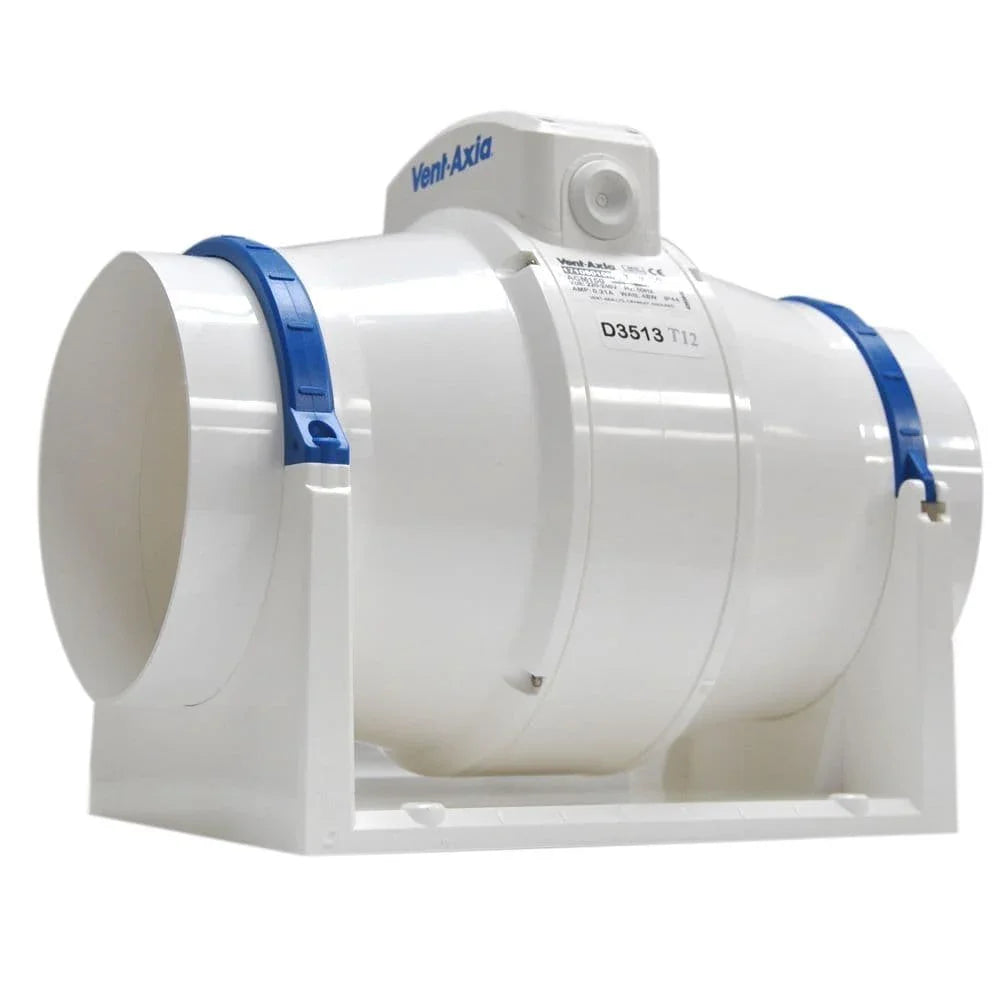

Vent Axia ACM200T 200mm Inline Fan with Timer 17108020

Vent Axia ACM200T
Vent Axia 17108020 8 Inch 200mm In Line Fan with Timer

Specification
Air Extraction : 810m3/hr
Air Extraction L/s : 225 L/s
Noise : 41dB @ 3m
Watts : 110W

Designed for very large domestic applications or small commercial installations, the Vent Axia ACM200T is a very powerful 8 inch 200mm inline fan with over run timer. Boasting 810m3/hr it may be used to extract steam and stale air from one large room, such as a small shower block or multiple rooms such as master bathroom and ensuites in a large domestic property.

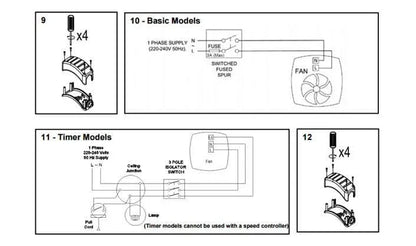

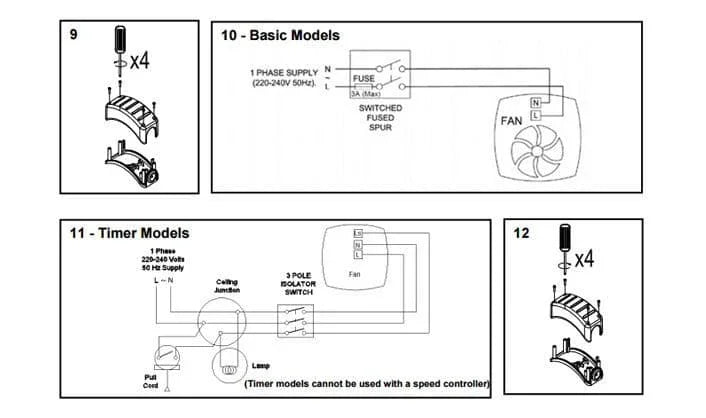

The over run timer is adjustable from 2 - 25 minutes and ensures all steam is extracted from the room before shutting the fan off.

The mixed flow impeller combines the characteristics of both axial and centrifugal fans and may be ducted up to 20m. The ACM200T should be used with standard 200mm ventilation ducting, grilles and bends.

Useful Links
What items do I need to install an inline fan in my bathroom?
A Guide to Bathroom Zones
Glossary of Ventilation Terms

2 Years
