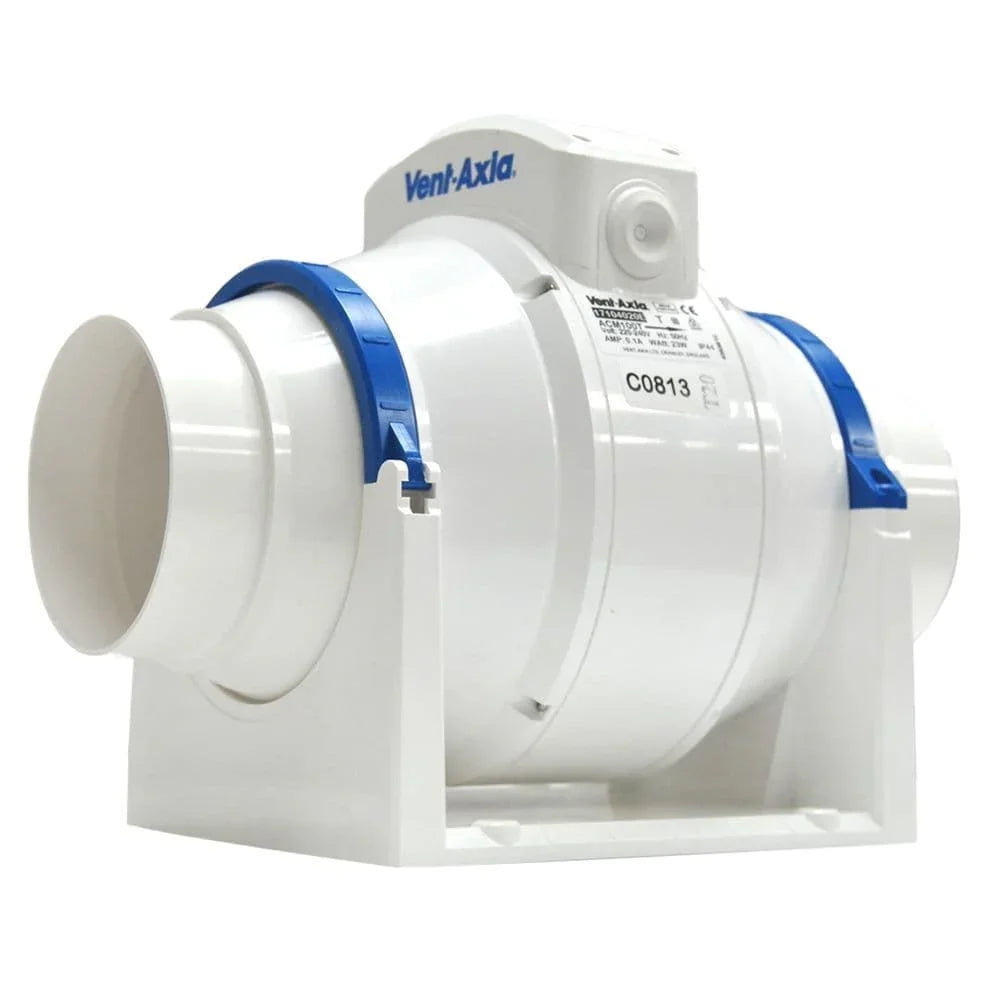

Vent Axia ACM125T Five Inch Inline Fan with Timer 17105020

Overview

Vent Axia's ACM125T five inch 125mm inline fan is perfect for larger bathrooms - particularly in situations where a longer duct run is required. Offering 328m3/hr, it can also be used to duct from two smaller bathrooms - such as ensuites - using a Y splitter.

Vent Axia state that the ACM range can be ducted up to 50m. Such long duct runs are achievable thanks to its use of 'mixed flow' technology which combines the charateristics of both axial and centrifugal impeller fans which generates greater air pressures. Please note that it is always better to keep duct runs and bends to a minimum thus decreasing air pressure in the duct run and improving performace of the fan. In other words, duct to the nearest exhaust point.

Key Features

• Air Extraction : 328m3/hr
• Air Extraction L/s : 91 L/s
• Noise : 25dB @ 3m
• Watts : 30W

Useful Links
What items do I need to install an inline fan in my bathroom?
A Guide to Bathroom Zones
Glossary of Ventilation Terms

2 Years
