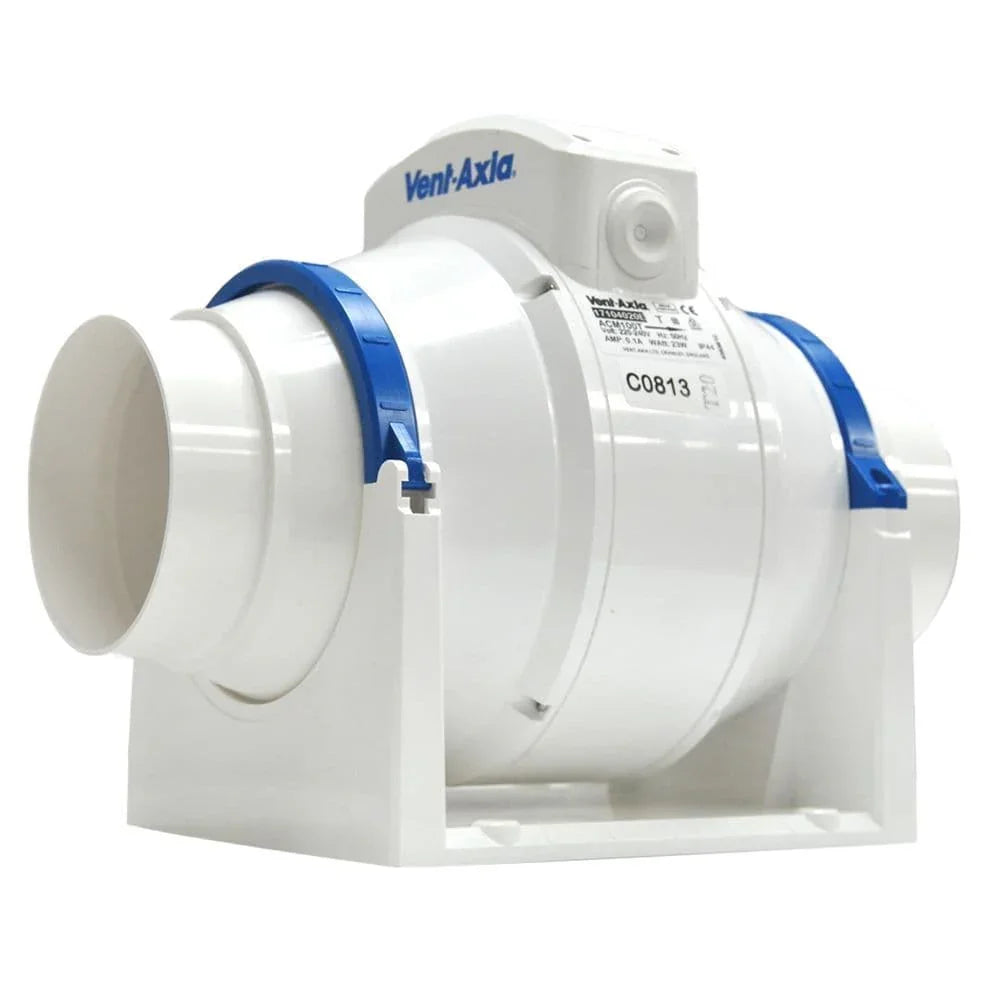

Vent Axia ACM125 Five Inch Inline Mixed Flow Fan 17105010

Overview

The Vent Axia 17105010 extractor fan is a powerful, five inch inline extractor fan using mixed flow technology to efficiently extract steam and stale air. Utilising a 125mm impeller the ACM125 is unusual, so if you're replacing an inline fan please check the diameter of your existing ducting system.

As with all Vent Axia products, the ACM125 boasts superb build quality, which results in very low noise levels when in operation. It may be operated by remote switch, such as pull cord or the bathroom light switch, or by a Vent Axia control unit such as the ambient response humidity sensor 563550A, below.

The 17105010 is also versatile in installation and may be mounted horizontally or vertically. If mounted vertically, we recommend the use of a condensation trap to prevent water ingress into the fan.

Key Features

• Air Extraction : 328m3/hr
• Air Extraction L/s : 91 L/s
• Noise : 25dB @ 3m
• Watts : 30W

Useful Links
What items do I need to install an inline fan in my bathroom?
A Guide to Bathroom Zones
Glossary of Ventilation Terms

2 Years
