Vent Axia

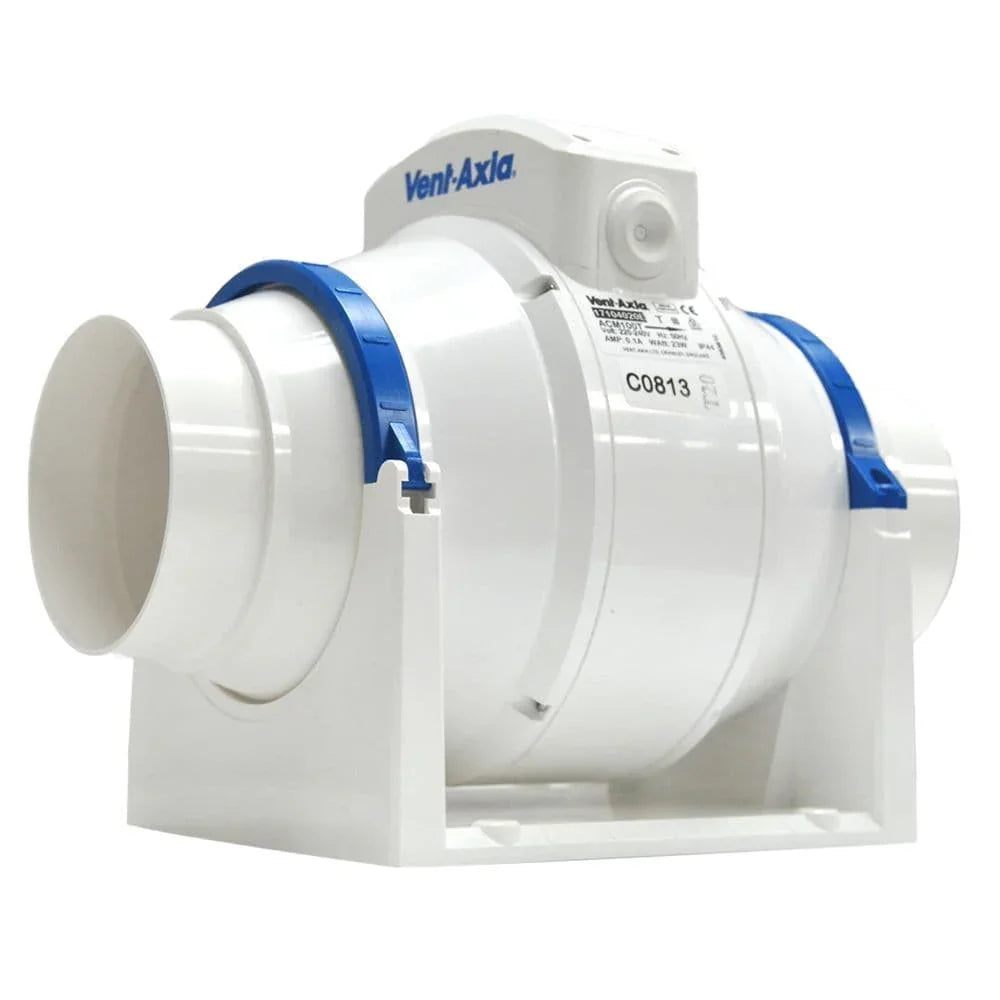

Vent Axia ACM100T Inline Fan with Timer 17104020

Manufacturer part number: VEN 17104020

.
11 In Stock - Next Working Day Delivery
£108.33
£108.33

Description

Overview

The Vent Axia ACM100T has long been regarded as the industry standard for inline fans. Vent Axia's superb build quality marries very high extraction rates with extremely low noise levels. Indeed the ACM100T is the quietest inline fan available. The 17104020 model, features an integral over-run timer, set upon install, from 6 to 25 minutes.

The ACM utilises a 'mixed-flow' impeller, allowing it to develop much higher air pressures in the chassis. This makes it considerably more powerful than an equivalent axial fan (about 2.5 times the extraction rate) and means that it push air along longer duct runs - up to 10m.

We also really like the rotatable chassis which is extremely compact and lightweight and is perfect for installation above the bathroom, even in tight loft spaces or ceiling voids.

Key Features

  • Air Extraction : 300m3/hr Air Extraction L/s : 61 L/s Noise : 22dB(A) Watts : 18w
  • Three speed motor
  • Integral Overrun Timer
  • Removable motor core
  • Rotating motor chassis
  • IP44 rated
  • Sound data from independent testing
  • Running speed selected on installation

Attributes

Brand

Vent Axia

Manufacturer part number

VEN 17104020

Functionality

Timer

Size

4" / 100mm

Type

Inline

Operation

Intermittent

Extraction Rate (m³/h)

300

Extraction Rate (l/s)

83

Guarantee

2 Years
Vent Axia ACM100T Inline Fan with Timer 17104020

£108.33
  • 5 stars: 10 (91%)
  • 4 stars: 1 (9%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Geraldine gregson

I wanted a fan that would do the job of clearing the effects of showering
and this fan works well.
i have used solid pipe in the loft to the outside wall rather than the flexi
one.
i had to adjust the speed to lowest setting as was a bit to noisy on full
the noise now is more acceptable

I
Ian Robert Uphill

An excellent fan. Hugely powerful & really quiet running (fitted on a dedicated board in the loft dampened with anti vibration pads).
Speedy delivery from Extractor Fan World. Bravo !

J
John
Excellent fans

I've bought several of these for my previous house and now my current house. They're so much better than the usual bathroom extractors and keep the windows/mirrors steam free and help to reduce overall moisture levels in the house. Straightforward to fit and very quiet.

J
John Liddle
Extractor Fan

Fan replaced the existing failed unit, giving all the same functions, but it was a much cheaper unit.

G
Gordon
Quiet

Does exactly what it says. Found the wiring a wee bit fiddly but that might just be me. Runs smooth and quiet, happy with purchase.

Bigger than my old unit and needs thinking about where it is getting fitted.

D
David WOODWARD
Had to fit in to an existing installation where an identical unit had failed.

Fitting was easy. However whilst the setup instruction for the run on timer states it is factory set to around 15 minutes. This was not the case as it ran for only around only 3 minutes. After some trial and error, I managed to reset it to 10/12 minutes.

L
L Griffiths
Vent Axia in-line extractor fan

Very pleased with the fan in shower room.

Good value for money.

Very quick delivery.

G
Gram
I am a big fan

Easy to install, good build quality, and excellent extraction. Nosier than expected, but not terrible. Plus, I have calculated that this fan can deal with over 22 bowel movements an hour from my bathroom, so I am a very happy customer.

D
David Palmer
Vent Axia ACM100T Inline Fan with Timer 17104020

just fitted in loft - easy to install, rotating body and removeable duct connectors are a assist. Seems quiet in operation

S
Stephen Peel
High performance product,very quiet and would highly recommnd.

Powerful and quiet.

D
David Gawn
Powerful and long lasting

These are great fans. Capable of removing steamy air very quickly without a lot of noise. I bought this one to replace the same model, but 25 years old. Not much has changed apart from the timer board and the metal baseplate and clamping rings which have been replaced with plastic components. I hope this one lasts as well.
