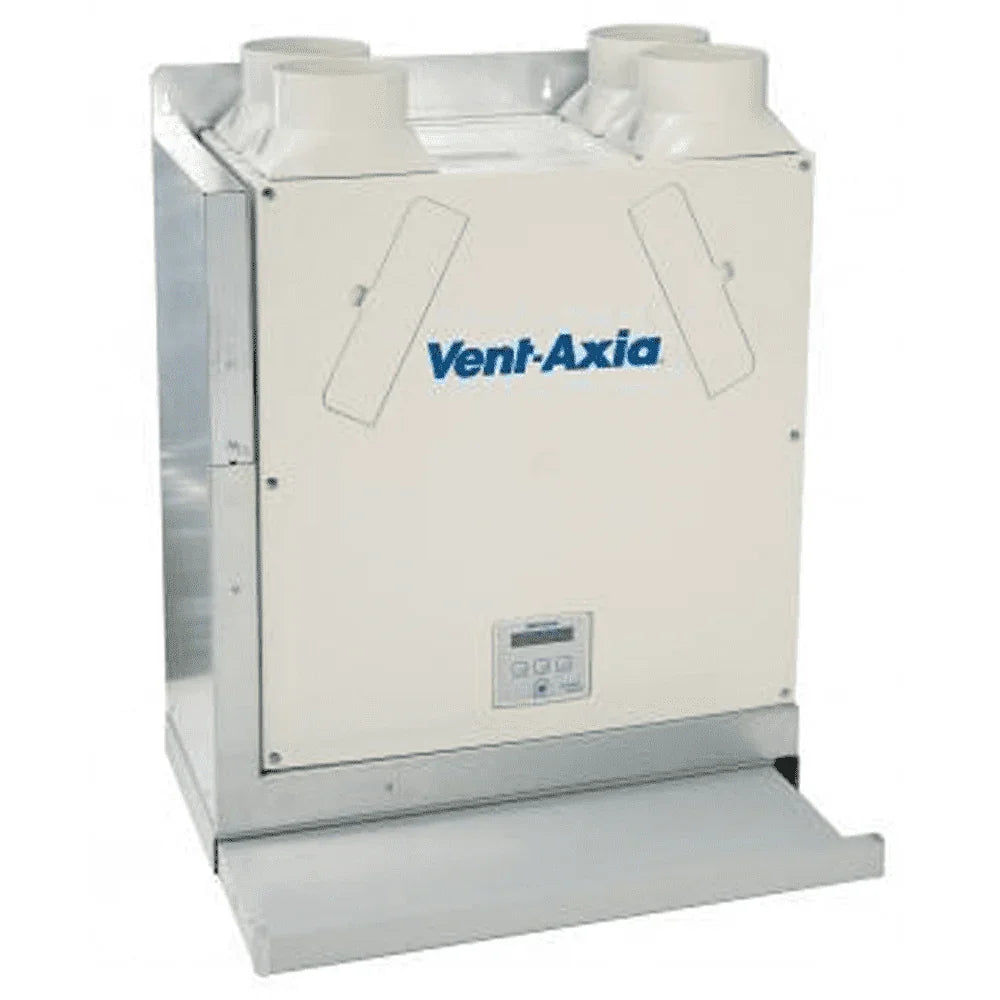

Vent Axia 477005 Lo-Carbon Sentinel Kinetic CSH R SELV
Whole-house heat-recovery system with summer bypass, humidistat, and white cooker hood. Right Hand model.
Vent Axia's Sentinel Kinetic is the UK's most popular MVHR range, with a host of features to suit all installations and build quality that offers years of trouble-free, reliable service.
- Heat Recovery Efficiency: 90%
- Suitable for houses up to 150 m2
- Airflow Max: 280m3/hr
- Airflow @100Pa: 245m3/hr
- Integral Cooker Hood
- Mechanical summer bypass
- Internal humidity sensor
- Digital control
- 5 Year warranty
- Vertical or horizontal connections
- Left or right-hand configuration
- Recognised in SAP PCDB
- Horizontal duct option for space-saving installations
- Fits within a 600mm wide aperture (300mm deep)
- Integrated digital controller for simple and accurate commissioning
- Plug and play control; Humidistat
- BMS connectivity
- LS Input (Light Switch)
- Self Diagnosis for simplified fault finding
- Adjustable delay On/delay Off timer
Details:
Easy Installation
Ducting can be attached to the unit horizontally, vertically or both. Minimum internal depth of kitchen cupboard: 300mm.
Horizontal and Vertical Spigots: The combination of spigot options allows installation in confined locations. If vertical and horizontal connection are required on the same outlet/inlet, additional spigots can be supplied.
The condensate connection can be taken through the rear of the unit or through the side of the unit into an adjacent cupboard prior to connection into pre-installed domestic waste water system.
Cooker Hood Unit

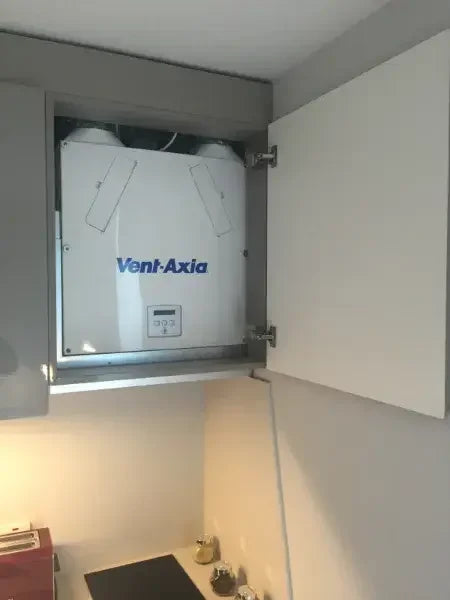

The Sentinel Kinetic Cooker Hood is designed to fit in a 600mm wide aperture above a hob. The telescopic hood incorporates two flat removable metal grease filters, low energy light bulbs and is available with a White or Brushed Aluminium front trim. The hood contains an integral fire damper in accordance with BRE Digest 398 and is connected to the heat recovery unit by a galvanised steel duct with access for cleaning. When the hood is opened, the heat recovery unit goes to boost speed, and the summer bypass automatically opens to prevent cooking by-products from entering the heat recovery cell. As an additional safety feature, the duct also contains a thermal cut-out fuse which turns off the MVHR unit in the event of excessive temperature in the airway. Cooker Hood units cannot be handed on-site and must be
purchased as left-hand (L) or right-hand (R) models.
SELV Models
SELV cooker hoods allow the distance between the hood and an electric hob to be reduced from 650mm to 550mm.
Integral Humidity Sensor
The integral humidity (models with H suffix) sensor increases speed in proportion to relative humidity levels, saving energy and reducing noise. The sensor also reacts to small but rapid increases in humidity, even if the normal trigger threshold is not reached. This unique feature ensures adequate ventilation, even for the smallest wet room. The night time relative humidity setback feature suppresses nuisance tripping as humidity gradually increases with falling temperature.
