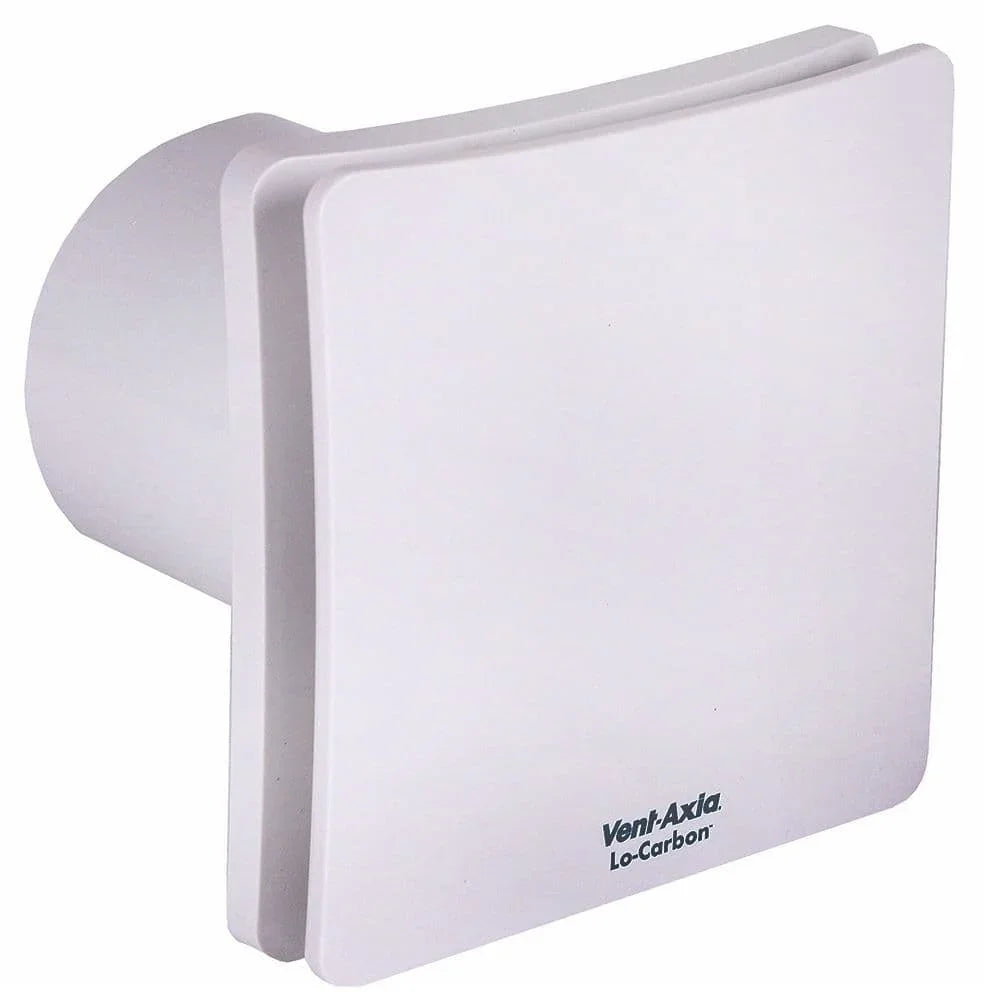

Vent Axia 473827 Lo-Carbon Centra HT Continuous dMEV Unit with Humidistat & Timer

Vent Axia 473827
Low Energy 4 Inch Quiet Bathroom Extractor Fan with Humidistat & Timer

Specification - Max Boost
Air Extraction m3/hr : 54m3/hr
Air Extraction L/s : 15 L/s
Noise : 25.2dB(A)
Wattage : 2.4w

Specification - High Trickle
Air Extraction m3/hr : 32.4m3/hr
Air Extraction L/s : 9 L/s
Noise : 15.5dB(A)
Wattage : 1.6w

Specification - Low Trickle
Air Extraction m3/hr : 21.6m3/hr
Air Extraction L/s : 6 L/s
Noise : 10.8dB(A)
Wattage : 1.4w

Suitable for installation in walls, panels, ceilings or windows. For window installation, the window kit Vent Axia 442947 must also be purchased. See "You May Also Need..." below.

Features
- Continuous Trickle function for fresh air in poorly or unventilated rooms.
- Incredibly low energy using only 2.4w on full power
- IPX4 rated
- Extremely low sound levels
- Satisifies minimum Part F requirement for bathrooms.

Overview
Dual speed continuous running ideal for bathroom and toilet applications, this unit runs continuously on trickle setting and may be boosted by the switched live input which activates the timer (adjustable up to 30 minutes).

An extremely quiet fan With sound levels as low as 10dB(A) and tasteful styling, Centra is one of the most discreet fans available.

The Lo-Carbon Centra complies with The Building Regulations Part F, System 3, or can be used as an ideal replacement for existing residential applications.

The adjustable 'Normal' running speeds make it suitable for continuous extract in kitchens, bathrooms, en-suites and utility areas. This means that only one fan type is required for any dwelling. Selection of the two normal flow rates (6l/s or 9l/s) is via a simple 'jumper' on the control board.



5 Years
