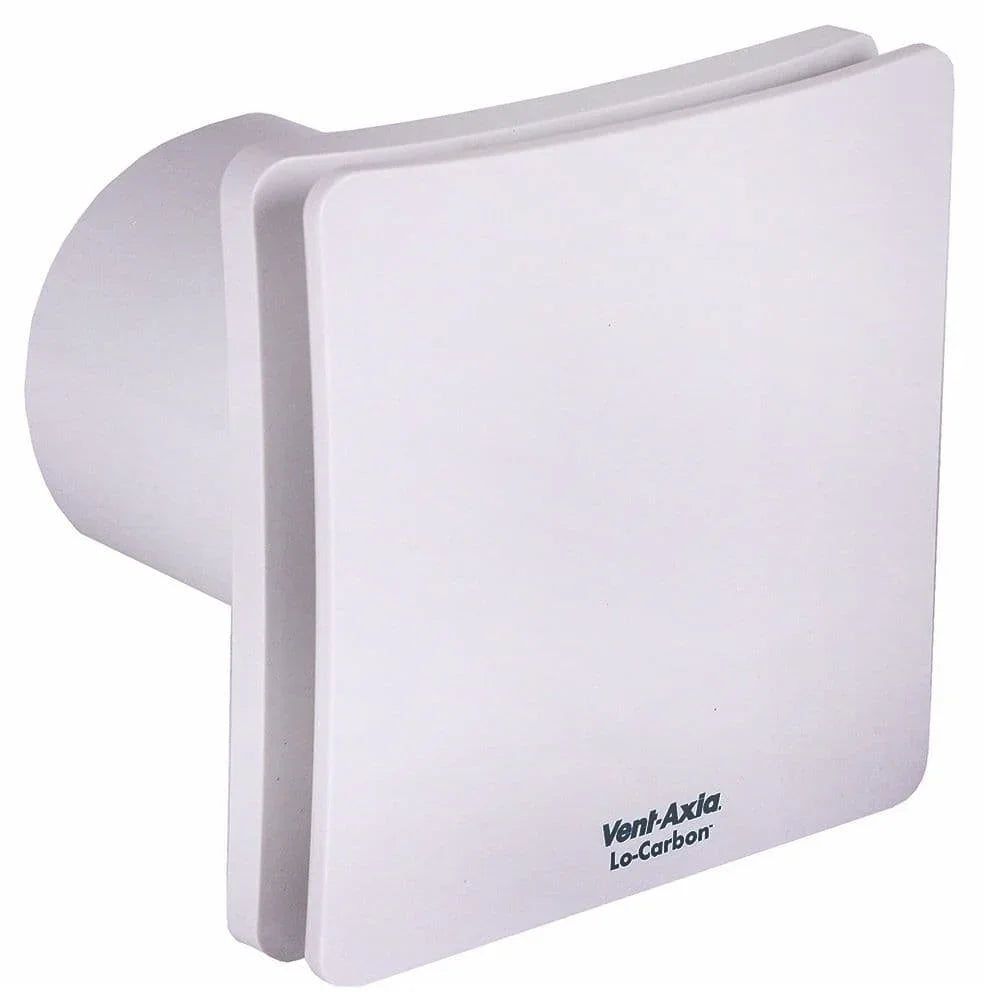

Vent Axia 473825 Lo-Carbon Centra T Continuous dMEV Unit with Timer

Specification - Max Boost
Air Extraction m3/hr : 54m3/hr
Air Extraction L/s : 15 L/s
Noise : 25.2dB(A)
Wattage : 2.4w

Specification - High Trickle
Air Extraction m3/hr : 32.4m3/hr
Air Extraction L/s : 9 L/s
Noise : 15.5dB(A)
Wattage : 1.6w

Specification - Low Trickle
Air Extraction m3/hr : 21.6m3/hr
Air Extraction L/s : 6 L/s
Noise : 10.8dB(A)
Wattage : 1.4w

Suitable for installation in walls, panels, ceilings or windows. For window installation please use window kit Vent Axia 442947, available below.

Features
- Continuous Trickle function for fresh air in poorly or unventilated rooms.
- Incredibly low energy using only 2.4w on full power
- IPX4 rated
- Extremely low sound levels
- Satisfies minimum Part F requirement for bathrooms.

Overview
The 473825 is a dual speed continuous running extract unit ideal for bathroom and toilet applications. It runs continuously on trickle setting and may be boosted by the switched live input which activates the timer (adjustable up to 30 minutes).

An extremely quiet fan With sound levels as low as 10dB(A) and tasteful styling, The Centra is one of the most discreet fans available.

The Lo-Carbon Centra complies with The Building Regulations Part F, System 3, or can be used as a replacement for any standard four inch axial fan.

The adjustable 'Normal' running speeds make it suitable for continuous extract in kitchens, bathrooms, en-suites and utility areas. This means that only one fan type is required for any dwelling. Selection of the two normal flow rates (6l/s or 9l/s) is via a simple 'jumper' on the control board.

5 Years
