Vent Axia 449059 Sentinel Kinetic Plus E MVHR Unit with Frost Protection

Vent Axia 449059
Multiple occupancy mechanical ventilation and heat recovery unit with frost protection

Rated Five Star by Extractor Fan World (see review)

Best selling whole house heat recovery range 2012

Extremely Powerful (400m3/hr) 94% heat recovery Variable fan speed control on both supply and extract Lightweight for easy installation Inegral BMS interfaces Absolute and rate of rise H/stat

Removable Filters Ultra quiet (from 20dB(A) @3m Integral min / max ventilation control set point Self diagnosis fault finding Horizontal / vertical duct outlets Auto frost protection to -20c

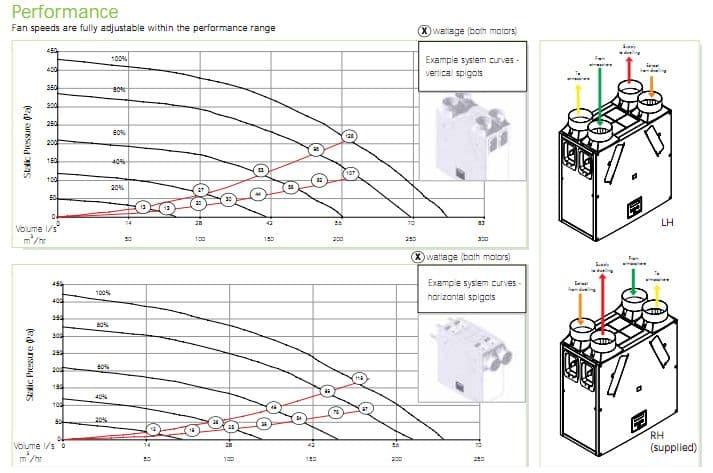

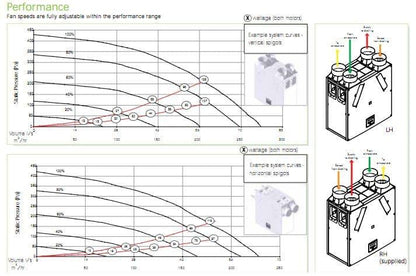

Performance: Up to 400 m3/hr at 150Pa Up to 10 x bathrooms and 1 communal kitchen. Dimensions Height: 722mm Width: 526mm Depth: 785mm Weight: 15kg

SAP Appendix Q Performance Power W/L/s Thermal Efficiency K+1 0.56 92% K+2 0.49 92% K+3 0.52 91% K+4 0.57 90% K+5 0.62 90% K+6 0.70 89% K+7 0.80 89%

EFW Review of the Sentinel Kinetic Plus E
The Big Daddy of the Sentinel range, the Kinetic Plus is a very powerful and extremely efficient ventilation and heat recovery unit, offering up to 400m3/hr ventilation and 94% heat recovery. Designed for use in multi occupancy residential situations such as student accomodation and nursing homes, light commercial environments and large domestic dwellings, the Kinetic Plus can vent up to 10 bathrooms and one large kitchen whilst still retaining 90% heat recovery.

Like its smaller brothers the Kinetic Plus boasts superb build qulaity and a wealth of features:

• Two, low energy, DC motor driven fans. (Double the life of AC motors)
• Latest,  high efficiency backward curved impellers
• Easily accessible heat recovery cube
• Removable EU3 Filters
• Vertical and Horizontal spigot options
• Fully insulated housing with a built in condensation drain.
• Quick change filter

The Kinetic Plus' BMS capability is also ideal for those commercial applications where landlords or property managers want to monitor and optimise building performance and maintenance. The Kinetic Plus B can provide status information and its self-diagnostics can report if any fault is found.

In short, if you are looking for a whole house ventilation and heat recovery unit - look no further. Vent Axia have thought of everything in the design of the Sentinel range - Power, performance, operation, noise, maintenance and installation. This is a five star unit, which will provide years of effortless ventilation and humidity control.
