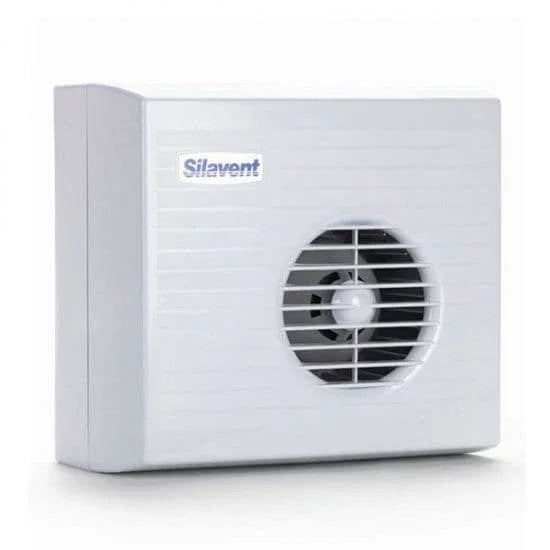

Silavent Curzon CUR7001B 100mm Centrifugal Fan

Specification:
Air Extraction: 80m3/hr
Air Extraction L/s: 22 L/s
Noise: 26dB(A)
Watts: 35w

Generating air pressures of up to 150Pa, the 4" Silavent / Domus Curzon CUR7001B centrifugal extractor fan is designed for use in situations with irregular duct runs up to 6m. The Curzon extracts at a rate of 22L/s (litres per second) or 80m3/hr. It is commonly mounted on the wall but may also be installed on the ceiling. It consumes 35w and operates very quietly at 26dB(A).

The CUR7001B model is the basic on/off version which may be wired to come on with the lights or via a separate pull switch.

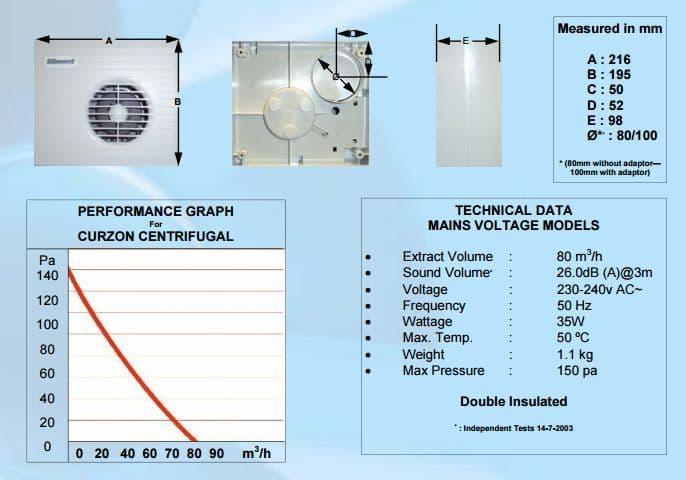

Dimensions
HxW: 216mm x 195mm
Depth of Fascia: 98mm


2 Years
