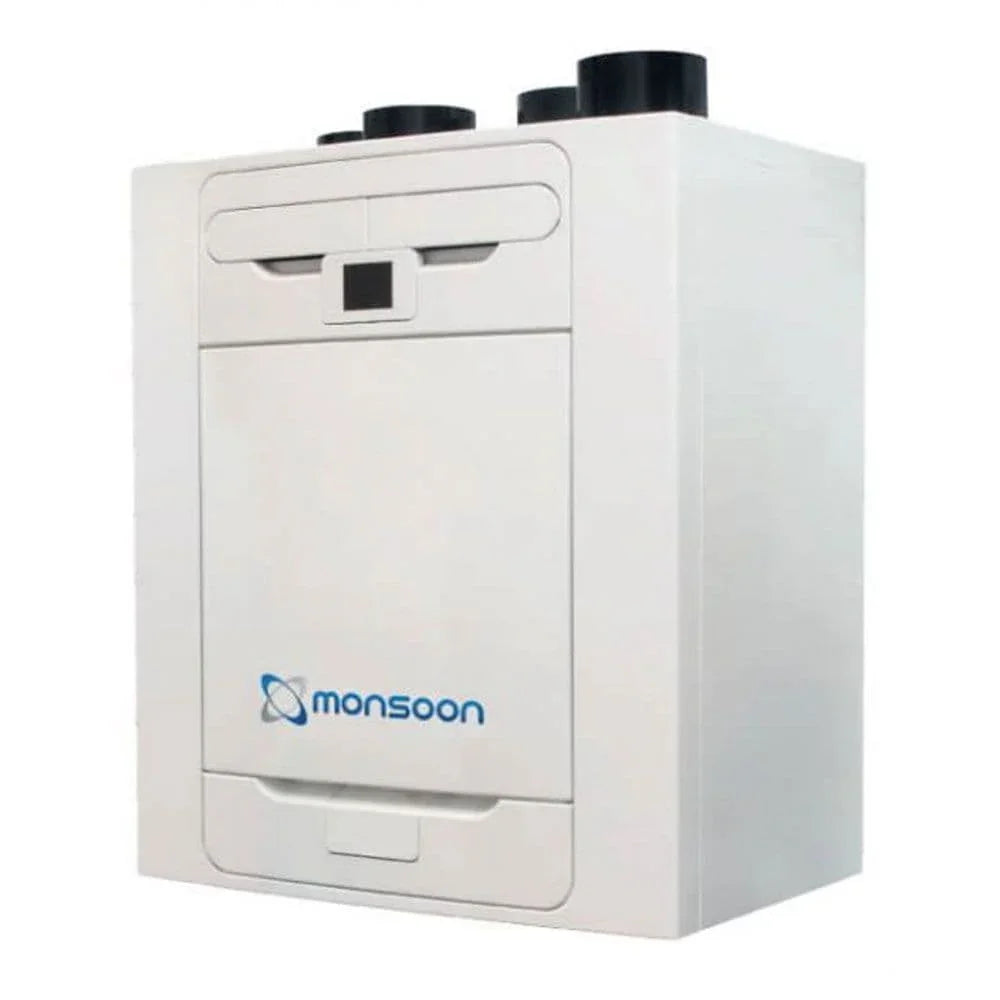

Monsoon MON-HRU/350-150i Energysaver IntelliSystem MVHR Heat Recovery

Overview

The MonsoonEnergysaver IntelliSystem heat recovery unit from National Ventilation is the latest energy saving heat recovery solution. Simple and effective it has been designed to provide the maximum level of control and comfort available by continuously supplying and extracting air throughout the home ensuring the best possible consumer experience.

For ease of installation, the MON-HRU/350-150i can be mounted vertically in a roof space, hallway cupboard or within a kitchen cupboard and comes with adjustable wall mounting fittings. Left (L) or right (R) hand installation is achievable by simply selecting the spigots to the atmosphere via the touch screen controller.

The Monsoon Energysaver IntelliSystem heat recovery unit has been designed with the customer in mind and comes with a number of options for system control. Control Panel: The IntelliSystem control panel on the unit comes with a manual boost switch which is designed to provide an increased level of ventilation when required to eradicate odours or during hot periods during the summer. The unit will operate continuously on a normal mode setting and will boost when one of the control devices, such as the humidistat is activated. App controlled: Using the App the user can easily view the current air temperatures, check the status of the unit and even have the ability to select different operating modes.

Key Features

• Touch screen and app control
• Boost rate 425m3/h 118 litres per second
• Easy installation with a lightweight unit
• Complete summer bypass
• Wi-Fi connectivity
• Wireless commissioning
• USB Pre-commissioning
• Left/right handing
• Pre-heater & post heater options
• ISO ePM2.5 & ISO ePM10 filter options

Technical Data

• Supply Voltage: 220-240V/1/50Hz
• Power (W): 190
• Sound @ 3m dB(A): 43
• Airstream Temperature: -20°C to 45°C
• Weight (kg: 27
• Built in Speed Control
• S.T.O.P. Protection
• Motor IP Rating: IP22

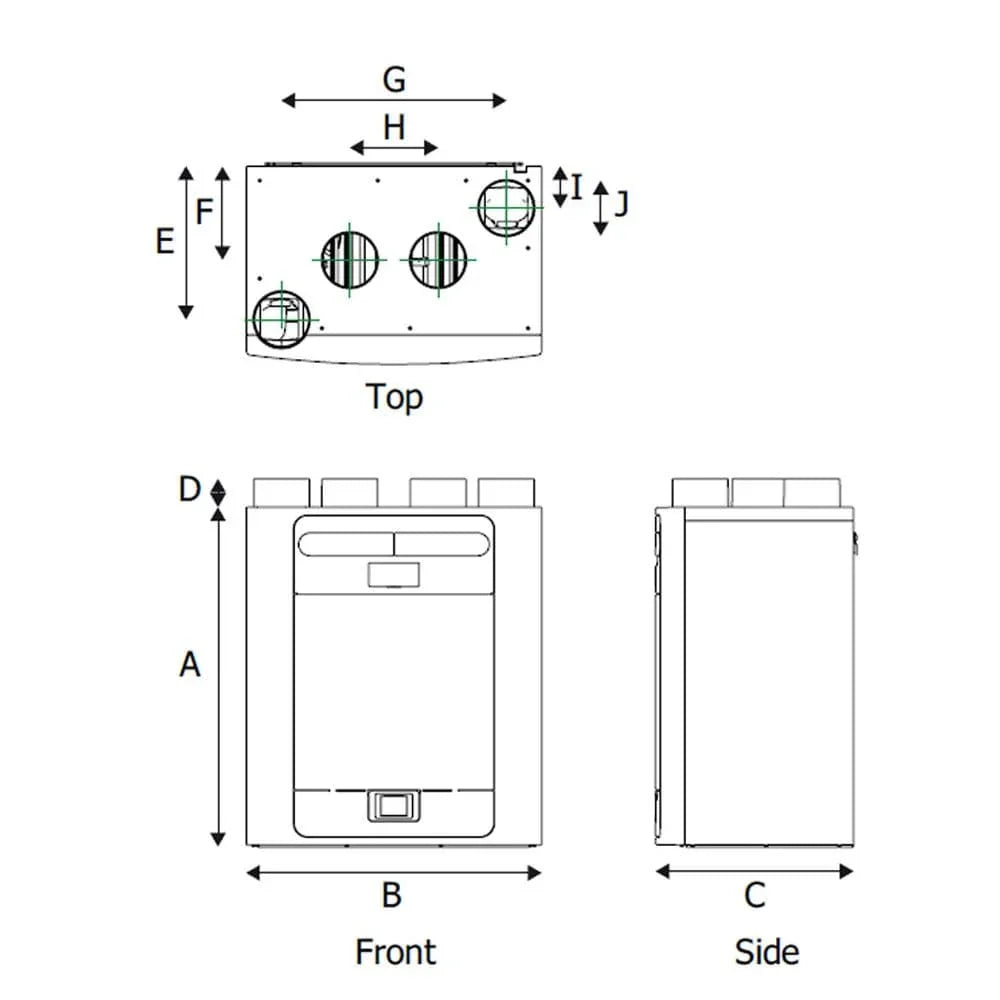

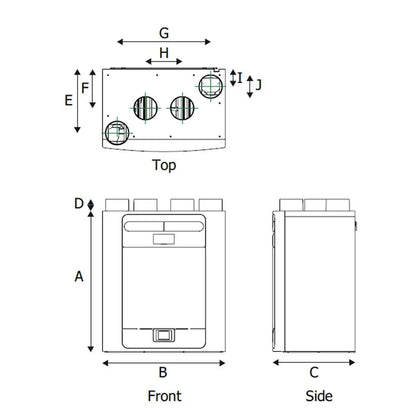

Dimensions

• A: 760mm
• B: 660mm
• C: 443mm
• D: 63mm
• E: 343mm
• F: 210mm
• G: 503mm
• H: 197mm
• I: 93mm
• J: 125mm
