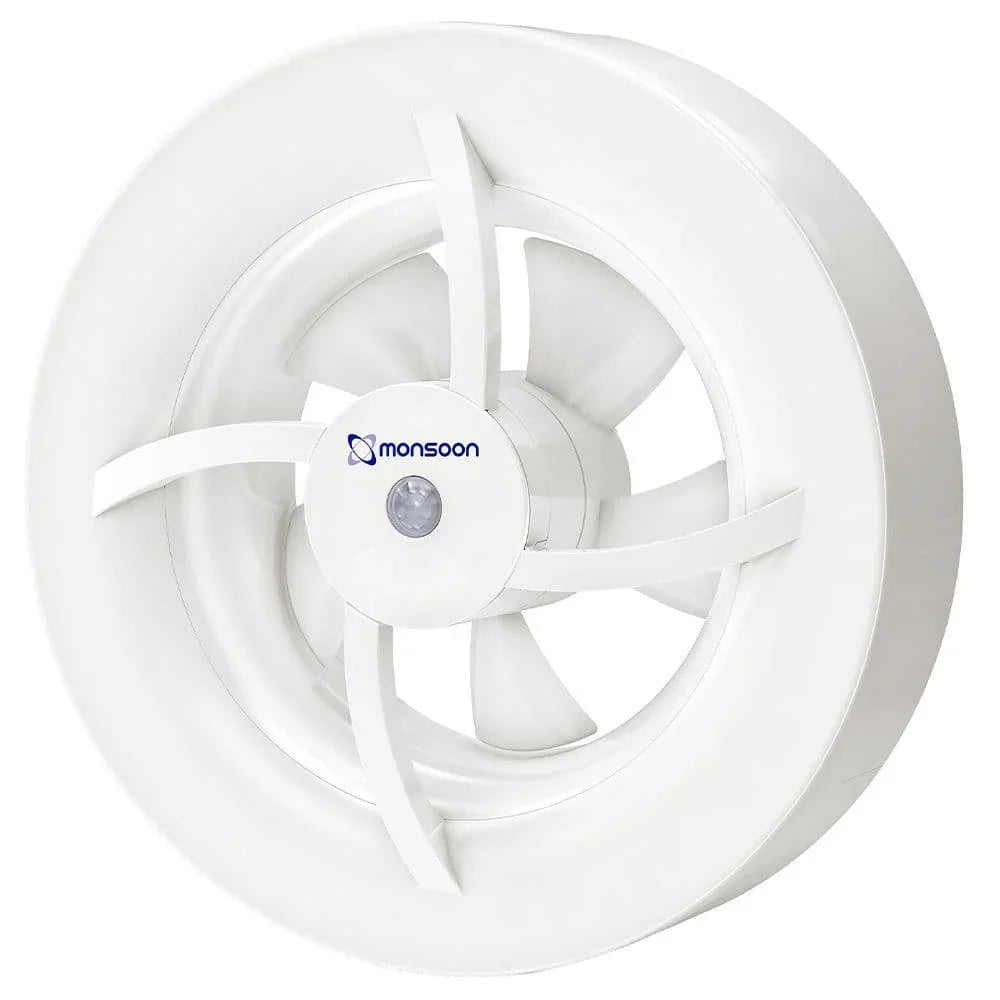

Monsoon Energysaver IntelliSense i7

Overview

The Monsoon IntelliSense i7 is an ultra quiet, ultra modern intelligent bathroom fan that is versatile enough to ventilate bathrooms, toilets and utility areas.

The Intellisense i7 has seven core ventilation modes for performing air extraction in all homes with natural ventilation. It has been designed and approved for installation in wet areas (IP44) such as WCs, bathrooms and utility rooms. It is for mounting on the wall or ceiling. The seventh mode is the heat mover which allows the fan to transfer surplus heat to an adjacent room.

Continuous or intermittent

The IntelliSense i7 can be installed as either an intermittent fan or a continuous fan giving flexibility on installation options. During continuous operation the fan can run extremely quietly at low speed, just 17dB(A).

Intelligent humidity sensor

A self-adjusting humidity sensor continuously measures the humidity level in the room. The fan starts up automatically if the humidity level rises rapidly (e.g. in the case of a shower) or if the relative humidity (RH) exceeds 70%. When the humidity level is restored, the fan returns to the basic flow or stops

Presence sensor

The presence sensor is activated by motion (IR) or when the light is switched on. The over run time is 15 minutes. The fan switches to a medium speed, 60 m3/h, and depending on the choice of mode, it starts up immediately or after 2.5 minutes.

Ventilation Modes

Continuous Ventilation Modes

1. Fully automatic - three speeds
40 m3/h Basic flow, low/ 60 m3/h Presence mid/ 95 m3/h Humidity, max

2. When you need extra speed
40 m3/h Basic flow, low/ 60 m3/h Presence, mid/ 110m3/h Humidity, max

3. Fully automatic - two speeds
40 m3/h Basic flow, low/ 95 m3/h Humidity, max

Intermittent Ventilation Modes

4. Auto start humidity/presence sensor
60 m3/h Presence, mid/ 95 m3/h Humidity, max

5. Manual start/stop via switch
95 m3/h Max speed

6. Auto start + Airing function
60 m3/h Presence, mid/ 95 m3/h Humidity, max If the fan has been inactive for more than 24 hours, it will start and run for 30 minutes every 12 hours.

Heat Mover Mode

7. Move excess heat either between rooms or to atmosphere
Start @ 28°C (95 m3/h). Stop @ 24°C (Intermittent running)

Key Features

• Powerful 110m3/h
• Silent Running 17-25dB(A)
• Auto start humidity/presence sensor
• Overrun timer
• Airing function
• Continuous or intermittent
• 5 year guarantee
• Manufactured in the UK

5 Years
