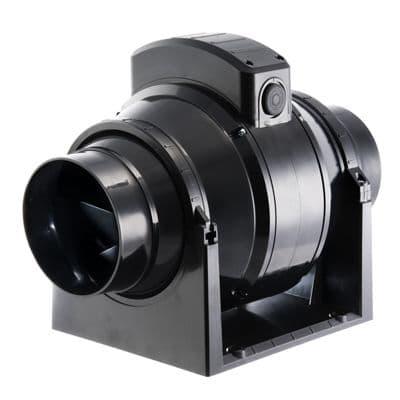

Manrose MF200S 8 Inch Inline Mixflo Fan

Extremely Powerful - 855m3/hr (!) Duct from any bathroom zone Extracts steam before condensing

Duct up to 20m 30,000hr life Commercial / large domestic use

Specification High Setting: - Air Extraction : 855m3/hr (max) - Air Extraction L/s : 238 L/s (max) - Noise : 48dB(A) (max) - Watts : 120w

Specification Low Setting: - Air Extraction : 648m3/hr (max) - Air Extraction L/s : 180 L/s (max) - Noise : 48dB(A) - Watts : 100w

Dimensions - Spigot diameter: 197mm - Overall Length: 300mm - Overall Width: 250mm - Height   (base to top of fan housing): 240mm

The Manrose MF200S is a seriously powerful 8 inch inline extractor fan  designed for use in commercial environments or those domestic installations where particularly large air movement is required. The MF200S benefits from a compact assembly size, very low noise levels relative to its extraction rate and high quality ball bearings which give a guaranteed life of 30,000 hours. The MF200S may be operated at three different speeds, slectable by use of the Manrose METCON speed controller.

An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one  length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffitt or roof.

Inline fans are particularly great for bathrooms as the internal grille may be sited directly above the shower or bath, thus extracting steam at source. With no electrics in the bathroom they are easy to install, saving both electrician and decorating costs and since they are housed in the loft or ceiling void the noise levels are also extremely low.

This fan can also be operated by humidistat by puchasing the 1361 Humidistat & Timer below. To Install This Fan...
You will need the following, all available from the accessories list below:
1 x Length of 8 inch flexible aluminium ducting. (sold by the metre)
4 x Large Duct clamps
1 x 12098W 8 inch circular internal grille

Useful Links
What items do I need to install an inline fan in my bathroom?
A Guide to Bathroom Zones
Glossary of Ventilation Terms

3 Years
