Manrose MF100S 4 Inch Mixed Flow Inline Duct Fan

Overview

The Manrose MF100S is a powerful inline extractor fan which is ductable up to 12m. An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffit or roof.

Inline fans are particularly great for bathrooms because you can site the extraction grille directly above the shower or bath, thus extracting the steam at the source. With no electrics in the bathroom they are easy to install, saving both electrician and decorating costs and since they are housed in the loft or ceiling void the noise levels are also extremely low.

This particular model; the MF100S is the basic On/Off version. It can be paired with Manrose 1361 remote humidistat and Manrose 1350 speed controller.

Key Features

• Extremely Powerful Mixed Flow Impeller - 245m3/hr! / 68L/s
• Very Quiet - 24db(A)
• Duct from any bathroom zone
• Duct up to 10 metres without loss of power.
• No electrics in bathroom (See installation diagram)
• Extracts steam before condensing

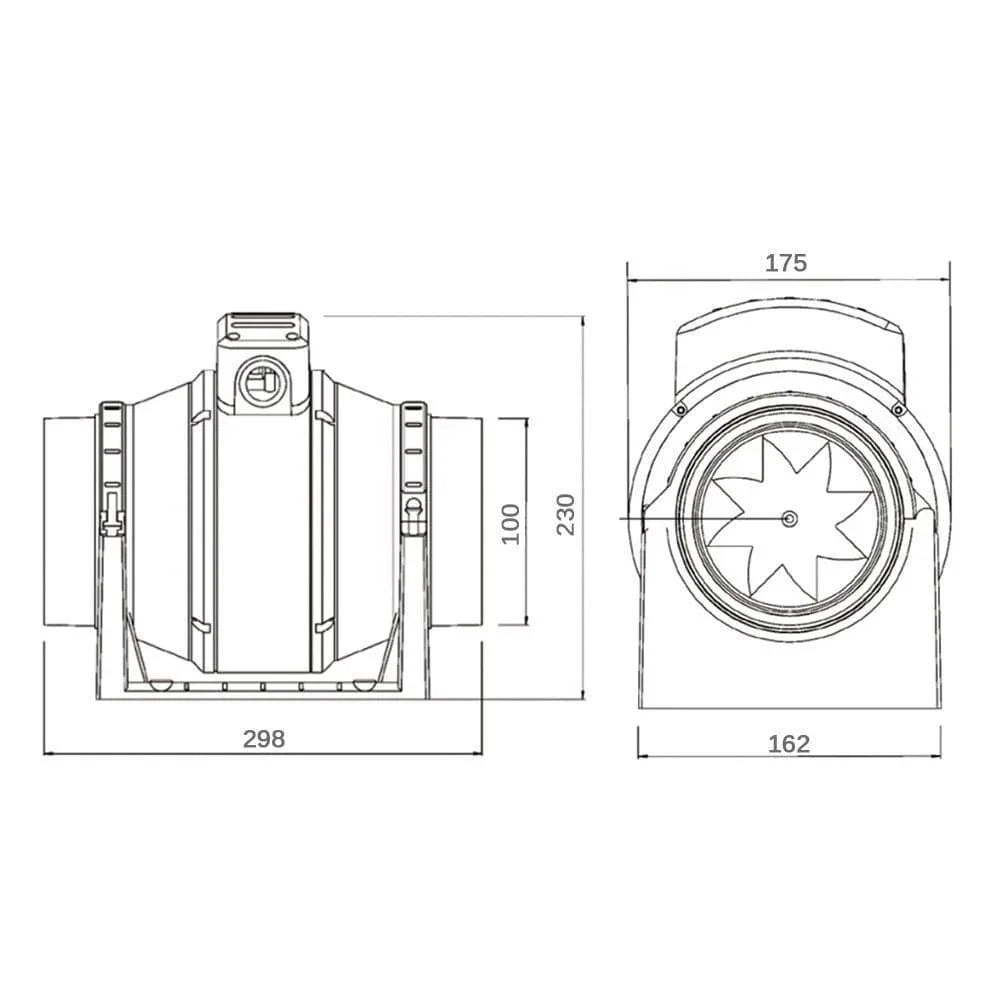

Specification

• Width: 168mm
• Height: 180mm
• Length: 298mm
• Spigot Diameter: 98mm

3 Years
