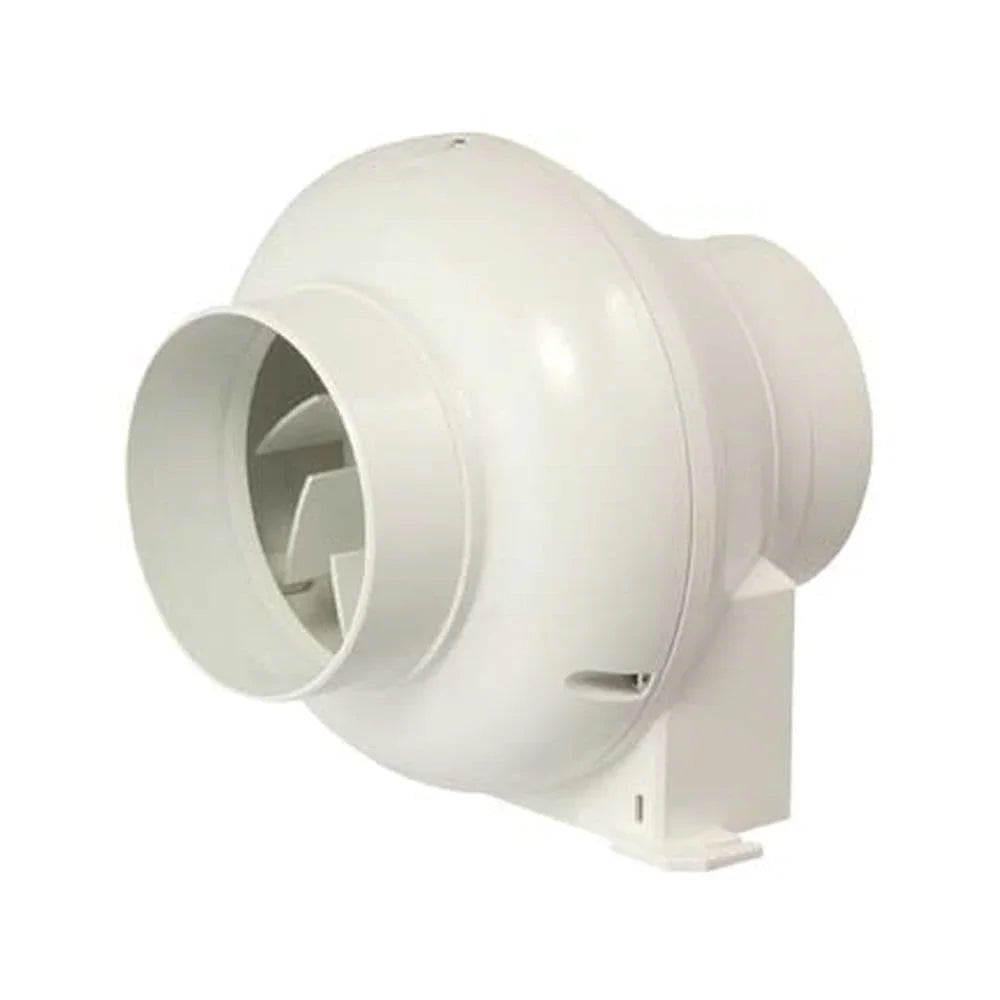

Manrose CFD200TN Inline Extractor Fan with Timer

Specification
Air Extraction : 110m3/hr | 31 L/s
Noise : 45dB(A) | Watts : 17W
Maximum Pressure: 120Pa
Fan Speed: 1400 rpm
Sound Volume: 45dB(A).
Maximum Operating Temperature: 40oC.
Cut Out: 100mm | Width: 258mm | Height: 195mm.

Still one of the UK's most popular inline fans the Manrose CFD200TN can be used in a wide range of domestic, commercial and industrial applications. It uses backward curved centrifugal impellers for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. The CFD200TN has an extract rate of 110m3/hr or 31 litres per second and generating 120Pa air pressure may be installed with up to 10m of ducting without significant loss of power.

This particular model has an over run timer, adjustable 1-20 minutes., which may be operated from the light switch. The timer keeps the fan running for a preset time after switching off. Power to the CFD200T is provided by a single phase (consuming 45W) induction motor with pre-oiled bearings for a long, maintenance-free life. It requires three wires: permanent phase, switched phase, neutral.

- Supplied with mounting bracket
- Manufactured using high impact ABS Thermoplastic for strength and durability
- Designed to comply with the 2006 Building Regulations on Ventilation (F1).
- A spring operated Non return flap built in to the discharge spigot to prevent Back Draughts

To Install This Fan...
You will need the following, all available from the accessories list below:
1 x Length of flexible aluminium ducting, up to 10m in total.
2 x Duct clamps (optional, but recommended)
1 x Fixed external grille
1 x Circular internal grille
1 x condensation trap (if fitting vertically)
