Domus Ventilation HRX-AQH200-B MVHR Ceiling Unit with Summer Bypass

Specification Air Extraction: 30 L/s Noise: 24dB(A) SFP: 0.66W/(l/s)

Dimensions Length: 819mm - Width: 520mm Depth: 200mm Weight: 7.9kg


Compact and extremely light weight the HRX AQH200B unit from Domus Ventilation is an extremely versatile centralised ventilation unit that will fit neatly in a cupboard or the loft. Extracting stale air and moisture and replacing it with warmed fresh air, the AQH200B improves air quality, whilst reducing heating costs, with an energy efficiency of up to 88%.

Delivering up to 30l/s extraction the AQH200B can handle the demands of a kitchen and up to five bathrooms or floor area of up to 120m2. Commonly used in domestic settings it is often specified in houses and apartments. Offering 88% heat recovery the AQH200B will save energy transferring the heat from expelled air to the fresh incoming air via a polystyrene heat exchanger.

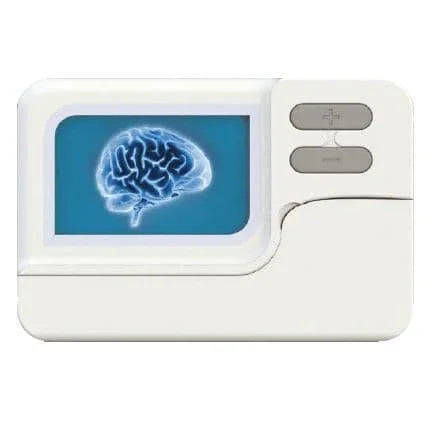

Incorporating AMIE (Air Management for Indoor Environments) technology, the AQH200B is supplied complete with the remote 'Blue Brain' control unit (pictured right), which offers a host of features and makes commissioning much simpler.

The AQH200B energy saving performance exceeds Building Regulations (2010) Parts F and L, incorporating several user friendly features that maximise system performance and offers an extremely low Specific Fan Power down to 0.66 W(l/s).

The Summer Bypass feature controls the heat level, essentially turning the heat exchange unit off, so that incoming air is not warmed further.

Features & Benefits

• Energy saving efficiency of up to 88%
• Exceeds Building Regulations Part F and L
• Sap Q listed and approved
• Summer Bypass
• Extremely low carbon SFP rating of 0.66 W/L/S
• Superb airflow rate of 30 L/s
• Suitable for houses with up to 5 wet rooms
• Easy to wire controls
• Lightweight & wall mountable
• Fits inside a kitchen cupboard or loft space
• Floor area up to 120m²

Control functions of the Blue Brain Control

• set temperature activation point
• set date and time
• set humidity trigger point
• adjust thermal summer bypass
• copy program
• select and edit program
• escape function
• save function
