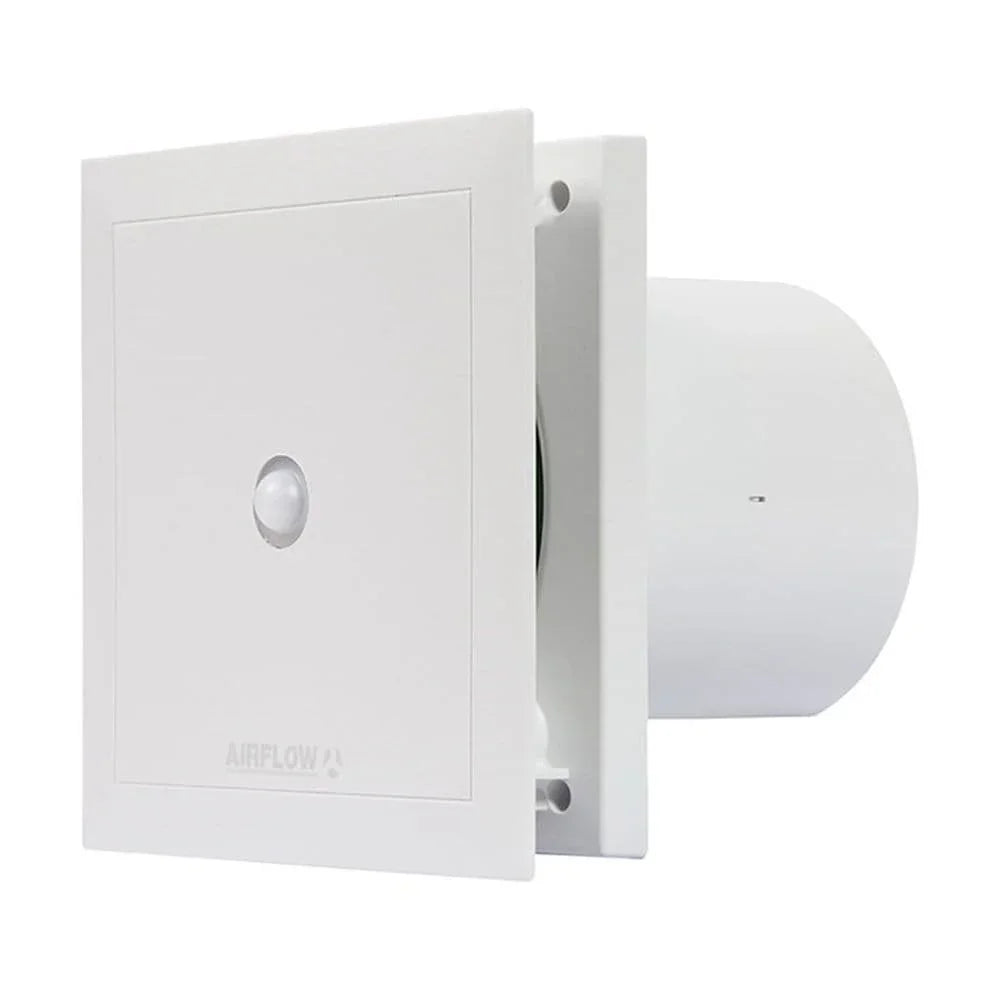

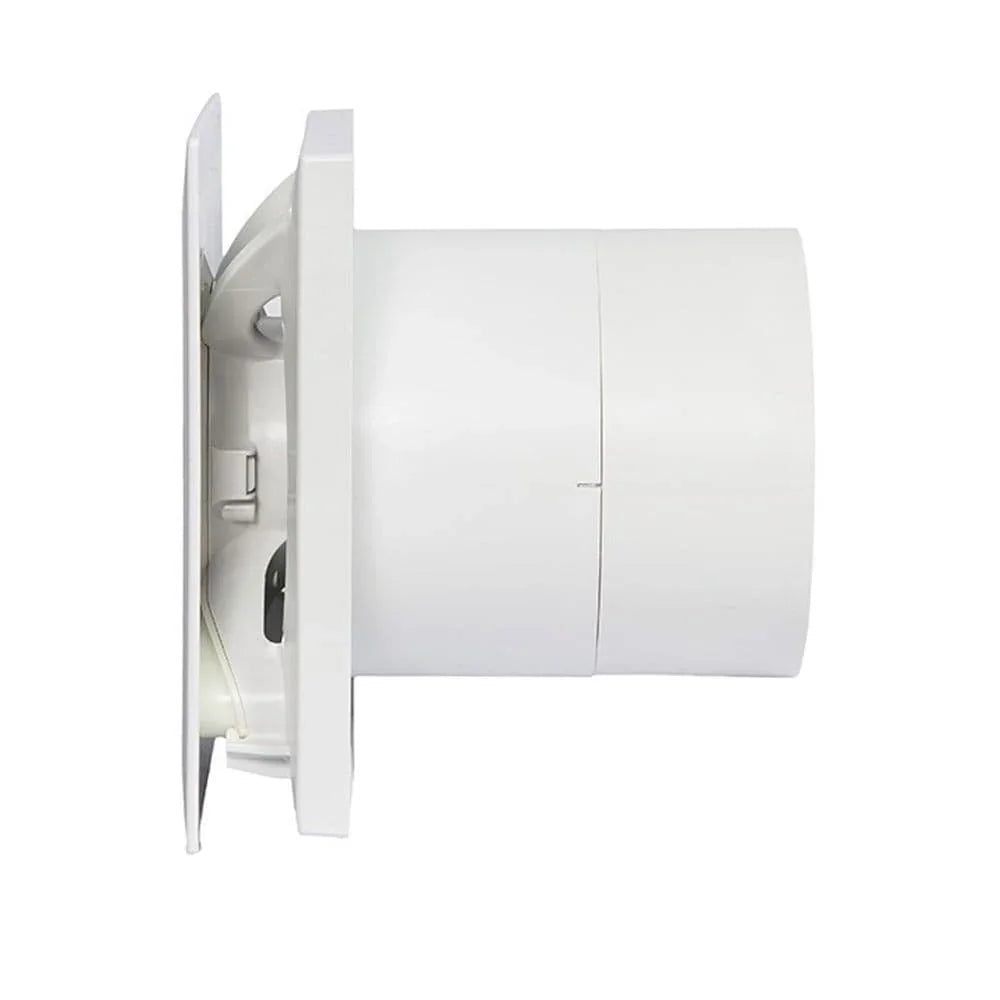

Airflow QT120MST Quiet Air 5 Inch Bathroom Fan with PIR- 9041500

Overview

Featuring an IP45 ("resistant to jets of water from all angles") rated motor, the 5 inch Airflow QuietAir QT120MST may be installed anywhere in the bathroom. Whilst most 240v extractor fans are suitable for bathroom zone 3 only, the QT120MST can be mounted in zones 1, 2 and 3 without the need for a separate 12v transformer. This reduces both product and installation costs and starts saving money before it has even been turned on!

The QT120MST features a motion sensor with overrun timer.

The QuietAir looks great but it also delivers on extraction rate: At 170m3/hr it is one of the most powerful axial bathroom fans available - and actually beats most centrifugal fans too. It doesn't however, blow its own trumpet - at 36dB(A), the Quiet Air certainly lives up to its name. Powerful and quiet, it is also very energy efficient, using only 13w on full power.

Key Features

• Awarded QuietMark 2014 for kitchen category by Noise Abatement Society
• Quiet from only 32 dB(A)
• Power consumption from only 10 watts
• Two speed options, 42 l/s and 47 l/s
• Motion sensor with overrun timer
• High efficiency impeller delivers up to 33 l/s through long lengths of rigid ducting, including 90 degree bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations

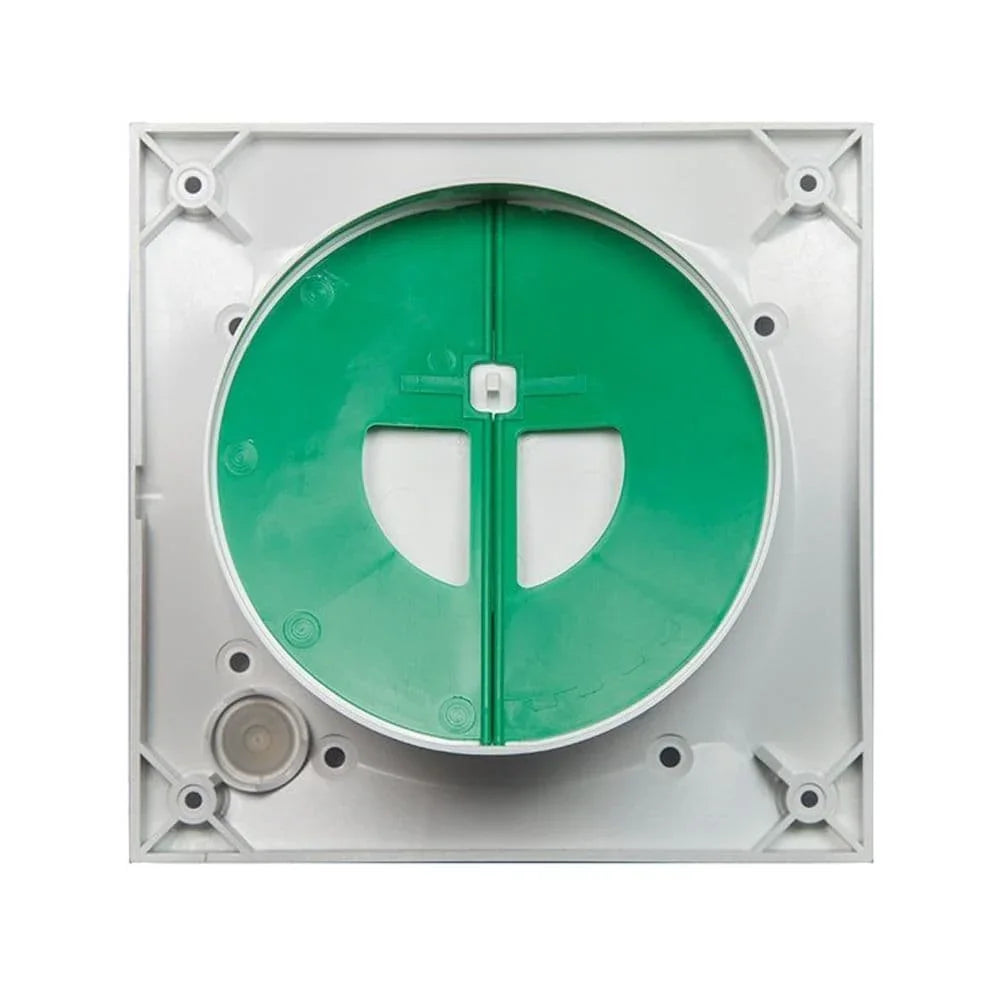

• Integral flow straightener and back draught flap
• Low specific fan power for SAP assessments
• Clip-on cover for ease of cleaning
• Innovative room refresh option (interval timer) programmable for automatic long term routine ventilation
• Complies with latest 2010 Building Regulations Approved Document F
• Airflow 41.6/47.2 l/s
• Airflow @ 31Pa, 33.3 l/s
• Axial high efficiency impeller
• Long-life ball bearings with approx. 40,000 hours life
• Wall/ceiling mounting
• Sound pressure 32/36 dB(A) @ 3m
• Fixed run-on timer 15 minutes
• Power 10/13 watts
• Low SFP (Specific fan power) 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40 degree

3 Years
