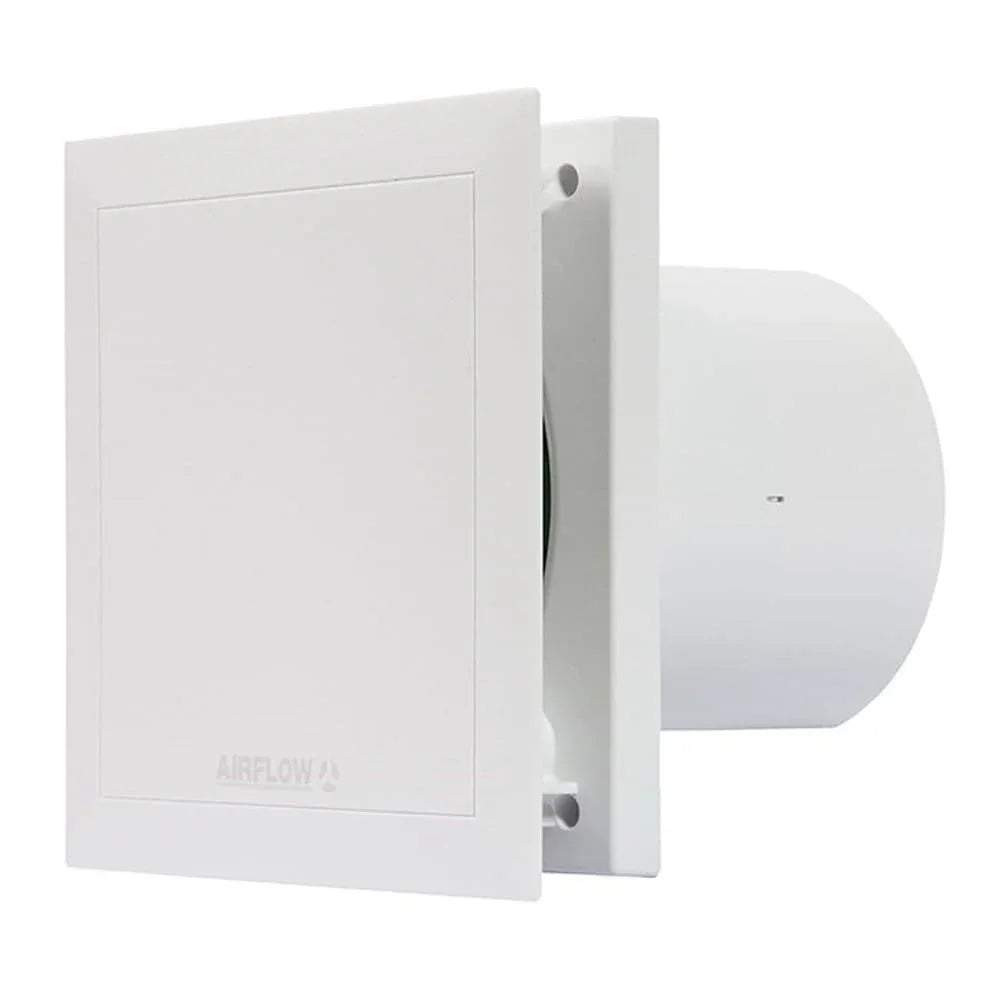

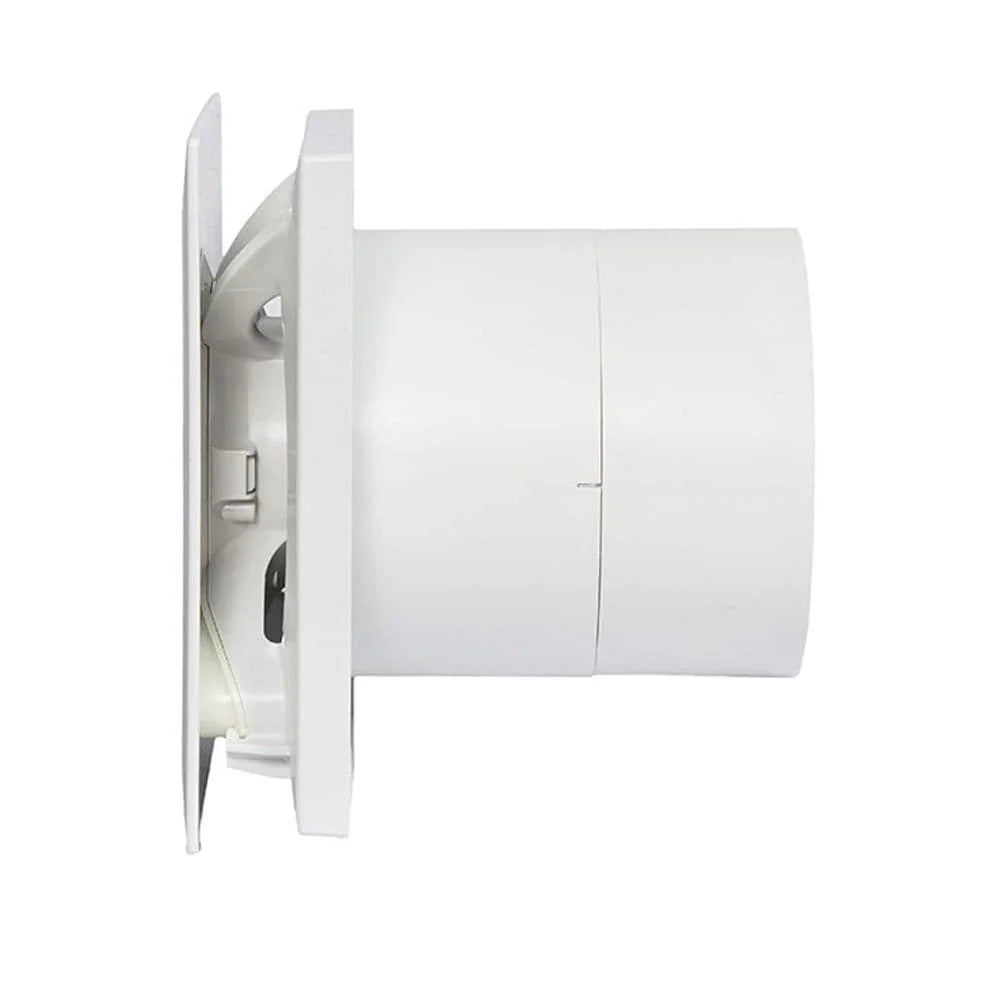

Airflow QT120 Quiet Air 5 Inch Bathroom Extractor Fan - 9041497

Overview

Featuring an IP45 ("resistant to jets of water from all angles") rated motor, the 5 inch Airflow QuietAir QT120 may be installed anywhere in the bathroom. Whilst most 240v extractor fans are suitable for bathroom zone 3 only, the QT120 can be mounted in zones 1, 2 and 3 without the need for a separate 12v transformer. This reduces both product and installation costs and starts saving money before it has even been turned on!

The Quiet Air range not only looks great but it also delivers on extraction rate: At 170m3/hr it is one of the most powerful axial bathroom fans available - and actually beats most centrifugal fans too. It doesn't however, blow its own trumpet - at 36dB(A), the Quiet Air certainly lives up to its name. Very powerful and quiet, it is also very energy efficient, using only 13w on full power.

Key Features

• Awarded QuietMark 2014 for kitchen category by Noise Abatement Society
• Quiet from only 32 dB(A)
• Power consumption only 10 watts
• Two speed options, 42 l/s and 47 l/s
• Basic switching (two speed options)
• High efficiency impeller delivers up to 33 l/s through long lengths of rigid ducting, including 90 degree bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations

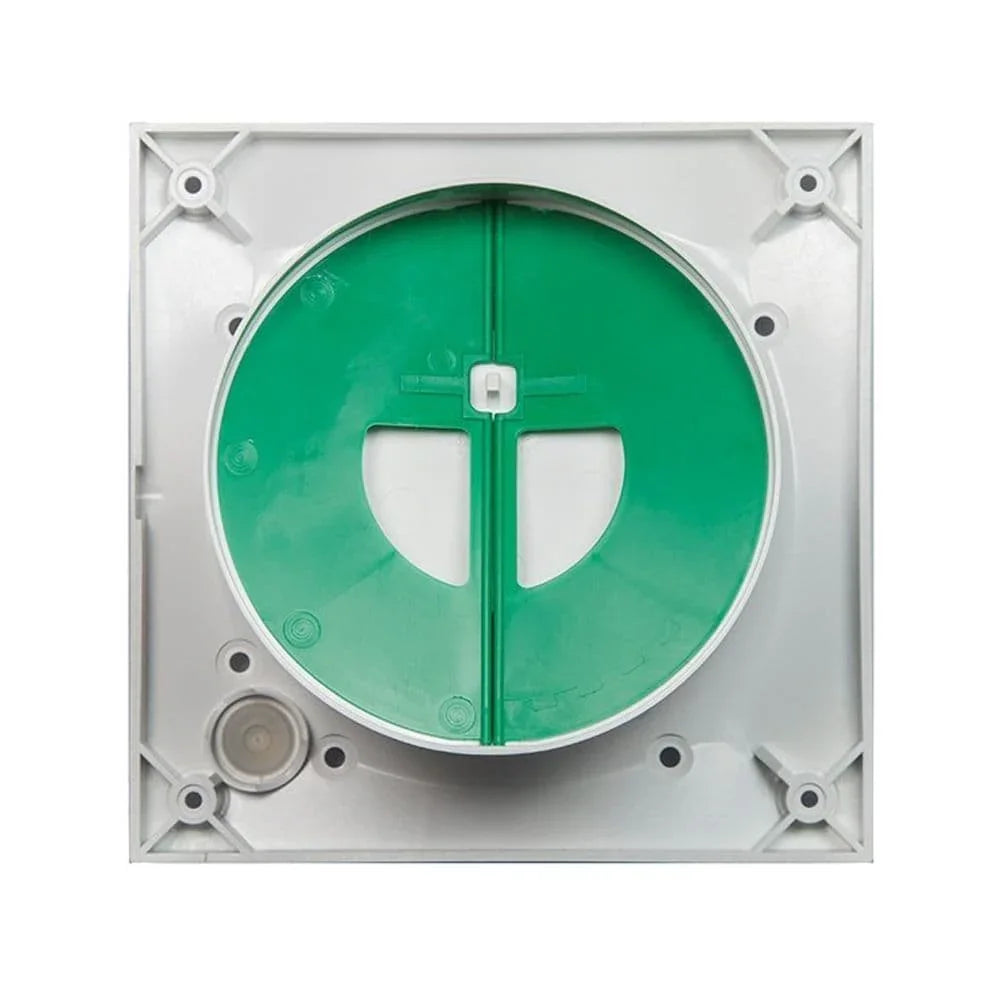

• Integral flow straightener and back draught flap
• Clip-on cover for ease of cleaning
• Complies with latest 2010 Building Regulations Approved Document F
• Airflow 41.6/47.2 l/s
• Airflow @ 31Pa, 33.3 l/s
• Axial high efficiency impeller
• Long-life ball bearings with approx. 40,000 hours life
• Wall/ceiling mounting
• Sound pressure 32/36 dB(A) @ 3m
• Power 10/13 watts
• Low SFP (Specific fan power) 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40 degree

3 Years
