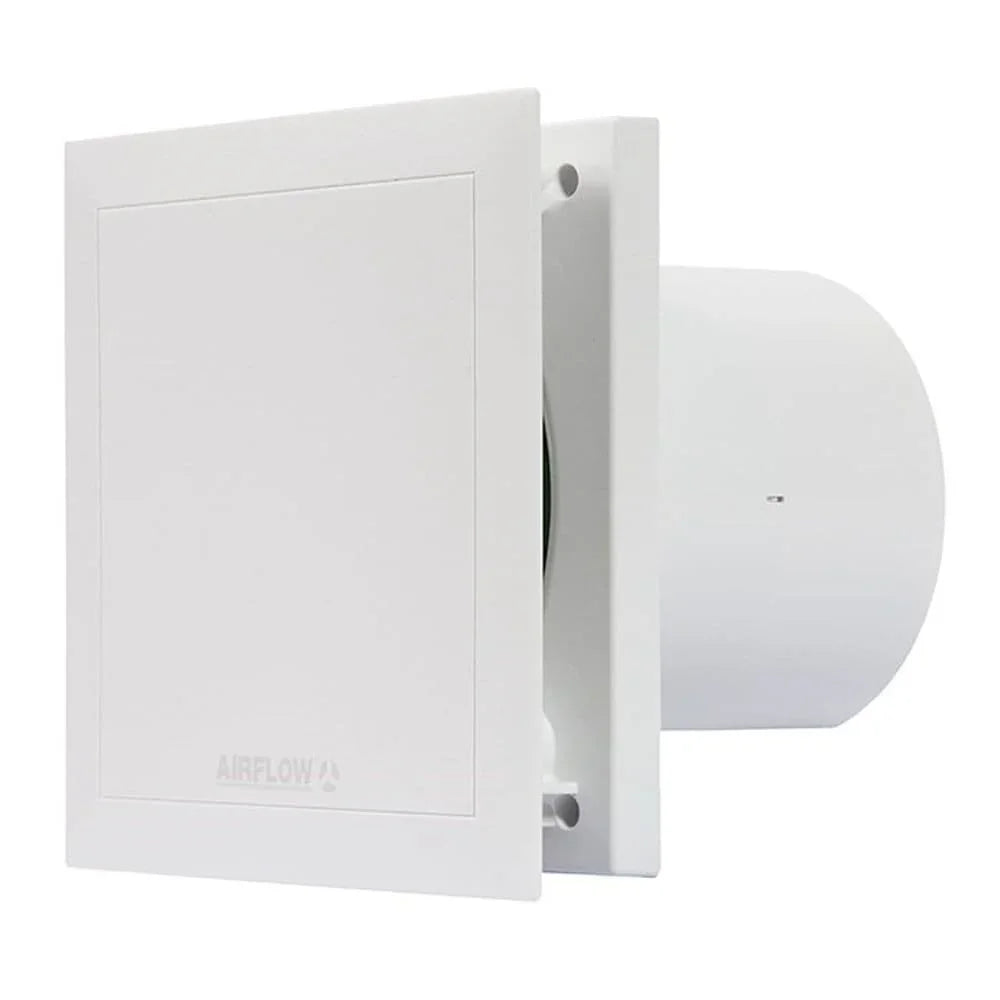

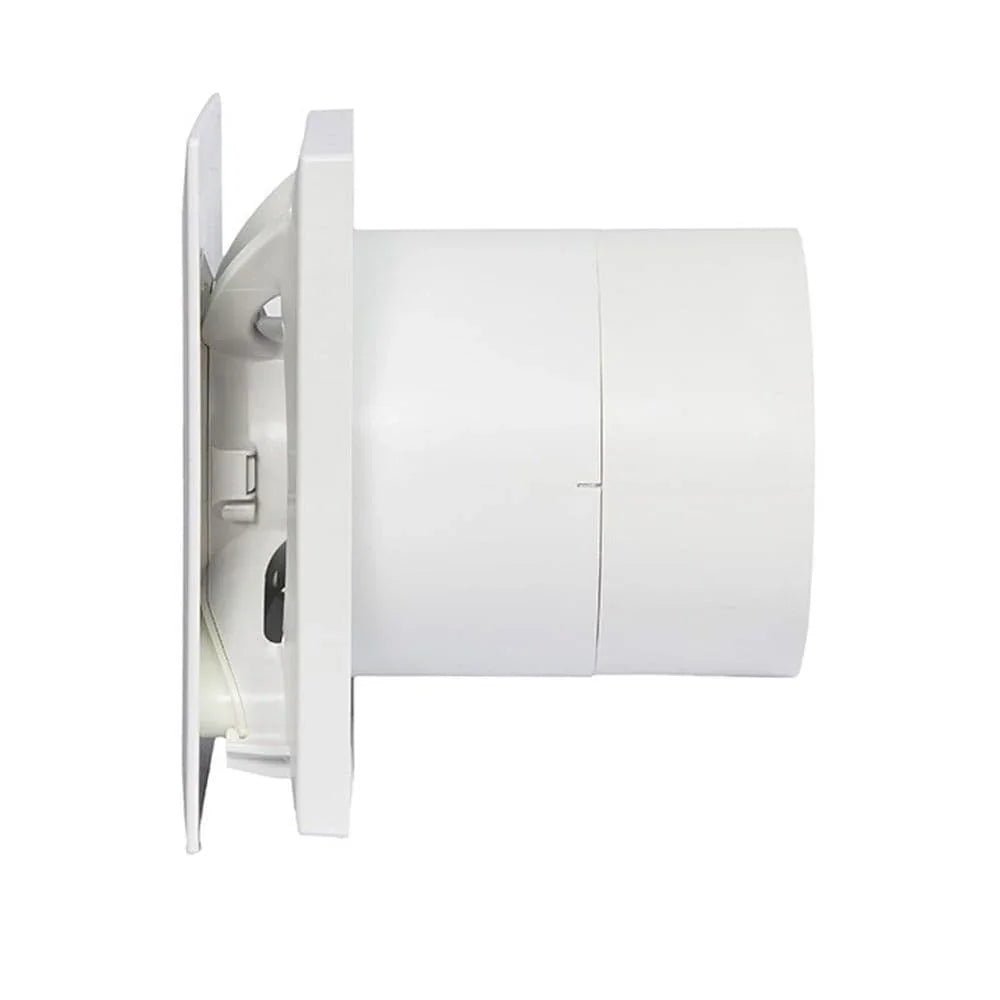

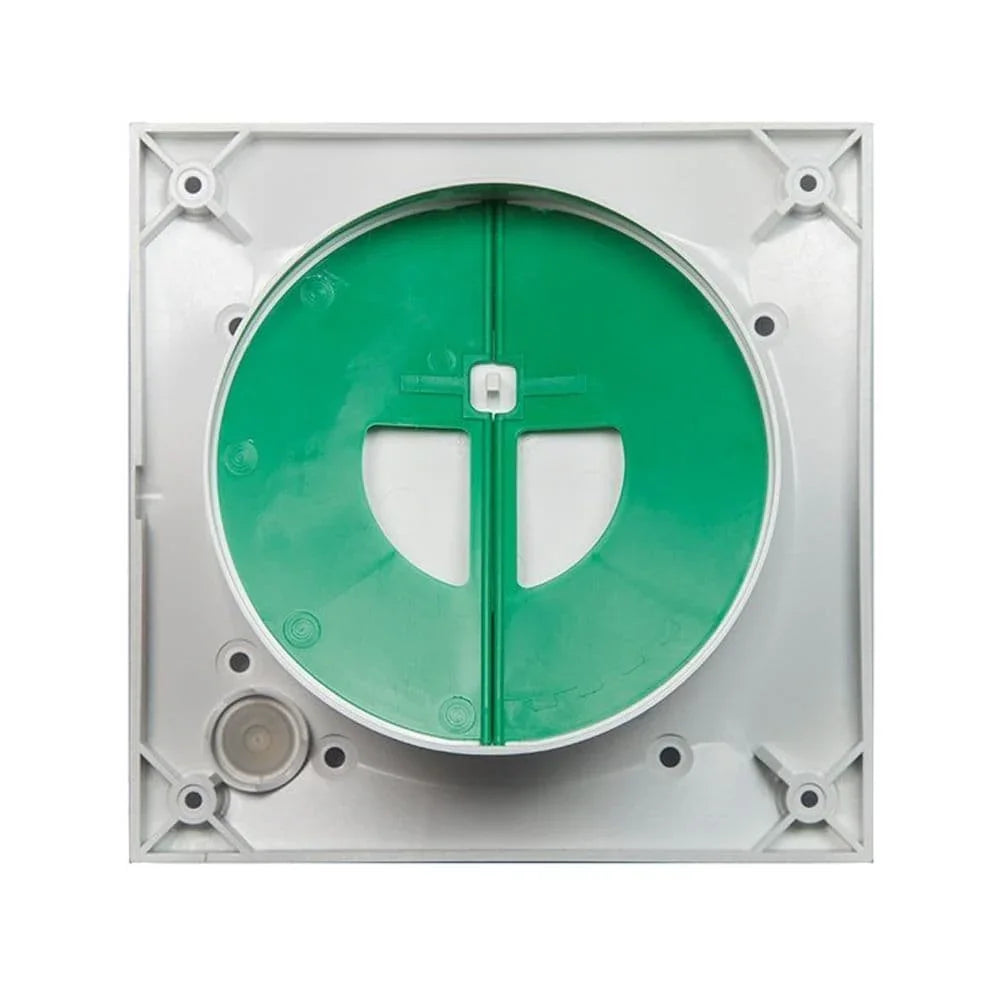

Airflow QT100T 4 Inch Quiet Air Bathroom Fan with Timer - 9041260

Overview

The Airflow QT100T (9041260) is a very powerful and extremely quiet bathroom fan. Despite being mains voltage (240v), with an IP45 rated motor, ("resistant to jets of water from all angles"), the QT100T may be installed in all bathroom zones, including 1 and 2 without the need for a remote transformer. This makes the QT100T a very special fan even without any of its other great features!

The QT100T features an intelligent delay start so that night time visits to the bathroom don't operate the fan. It also boasts an innovative 'room refresh' function that turns the fan on four times a day to ventilate the room. The timer is adjustable from 6 - 21 minutes. All QT100 fans are exceptionally quiet and very energy efficient but don't forget they are also extremely powerful delivering 90m3/hr. They may be ducted up to 10m.

In summary, the QT100T is a fantastic fan! No other model combines so many great features which is why we highly recommend this fan.

Key Features

• Awarded QuietMark 2014 by Noise Abatement Society
• Extremely quiet from 25 dB(A)
• Delay start for two minutes avoids unnecessary use (especially at night), and saves energy
• Power consumption from only 5 watts
• Long-life ball bearings with approx. 40,000 hours life
• Two speed options, 21 l/s and 25 l/s
• Adjustable overrun timer
• High efficiency impeller delivers up to 16.6 l/s through 12m of rigid ducting, including 90° bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations
• Integral flow straightener and back draught flap
• Low specific fan power for SAP assessments
• Clip-on cover for ease of cleaning
• Innovative room refresh option (interval timer) programmable for automatic long term routine ventilation
• Complies with latest Building Regulations Approved Document F
• Airflow 20.8/25 l/s
• Airflow @ 31Pa, 16.6 l/s
• Axial high efficiency impeller
• Wall/ceiling mounting
• Sound pressure 25/30 dB(A) @ 3m
• Adjustable timer (minutes) 6, 10, 15, 21
• Power 5/9 watts
• SFP 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40° Celsius
• Interval times, auto start (hours) 0, 8, 12, 24

3 Years
