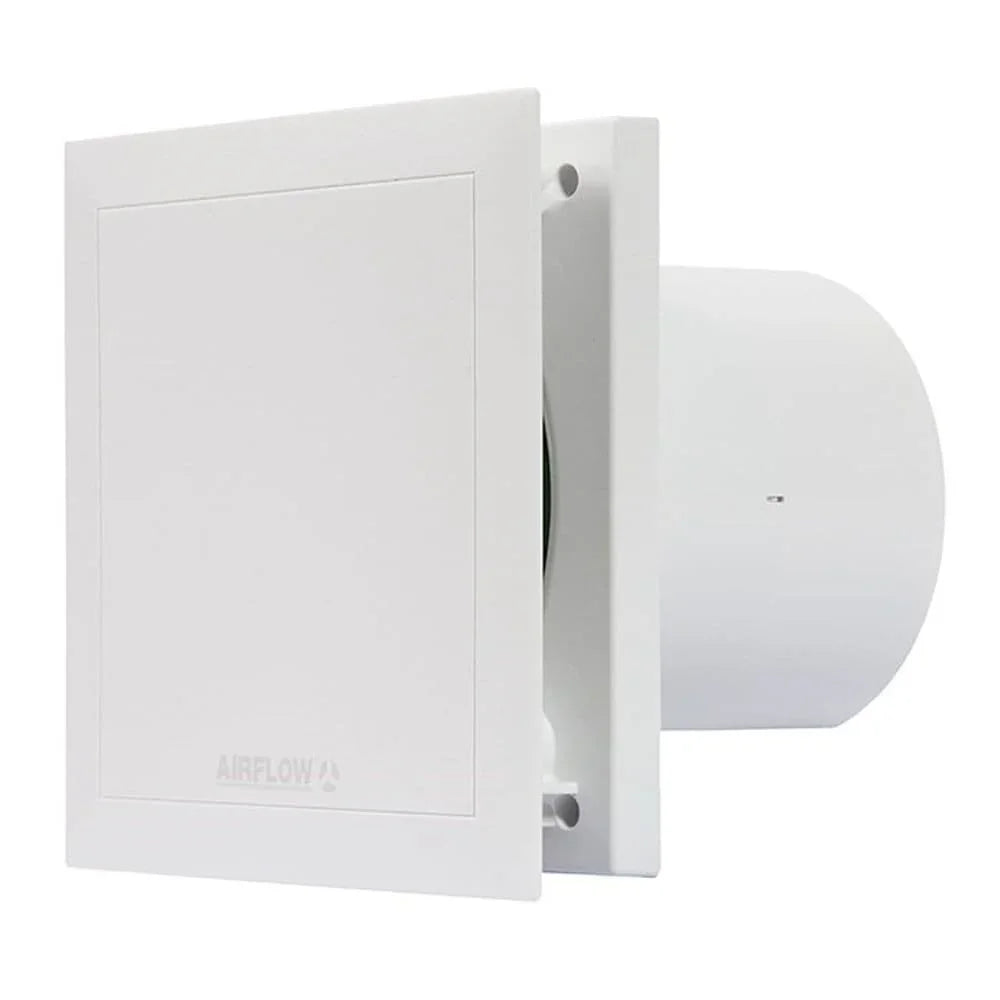

Airflow QT100HT 4 Inch Quiet Air Bathroom Fan with Humidistat and Timer - 9041261

Overview

The QT100HT is a mains voltage, very powerful and extremely quiet extractor fan that may be installed in all bathroom zones without a transformer. Using only 9w on full power, it is energy efficient but still boasts one of the highest extraction rates in any four inch axial fan, of 90m3/hr.

The integral humidistat operates the fan automatically according to the relative humidity of the bathroom - adjustable upon install from 65% - 90% RH. The timer is adjustable from 6 - 21 minutes. The QT100HT may be ducted up to 10m and round 90 degree bends without power loss. The QT100HT also features an intelligent delay start for night time trips to the bathroom.

Key Features

• Awarded QuietMark 2014 by Noise Abatement Society
• Extremely quiet from 25 dB(A)
• Delay start for two minutes avoids unnecessary use (especially at night), and saves energy
• Power consumption from only 5 watts
• Long-life ball bearings with approx. 40,000 hours life
• Two speed options, 21 l/s and 25 l/s
• Adjustable humidity and timer
• High efficiency impeller delivers up to 16.6 l/s through 12m of rigid ducting, including 90° bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations

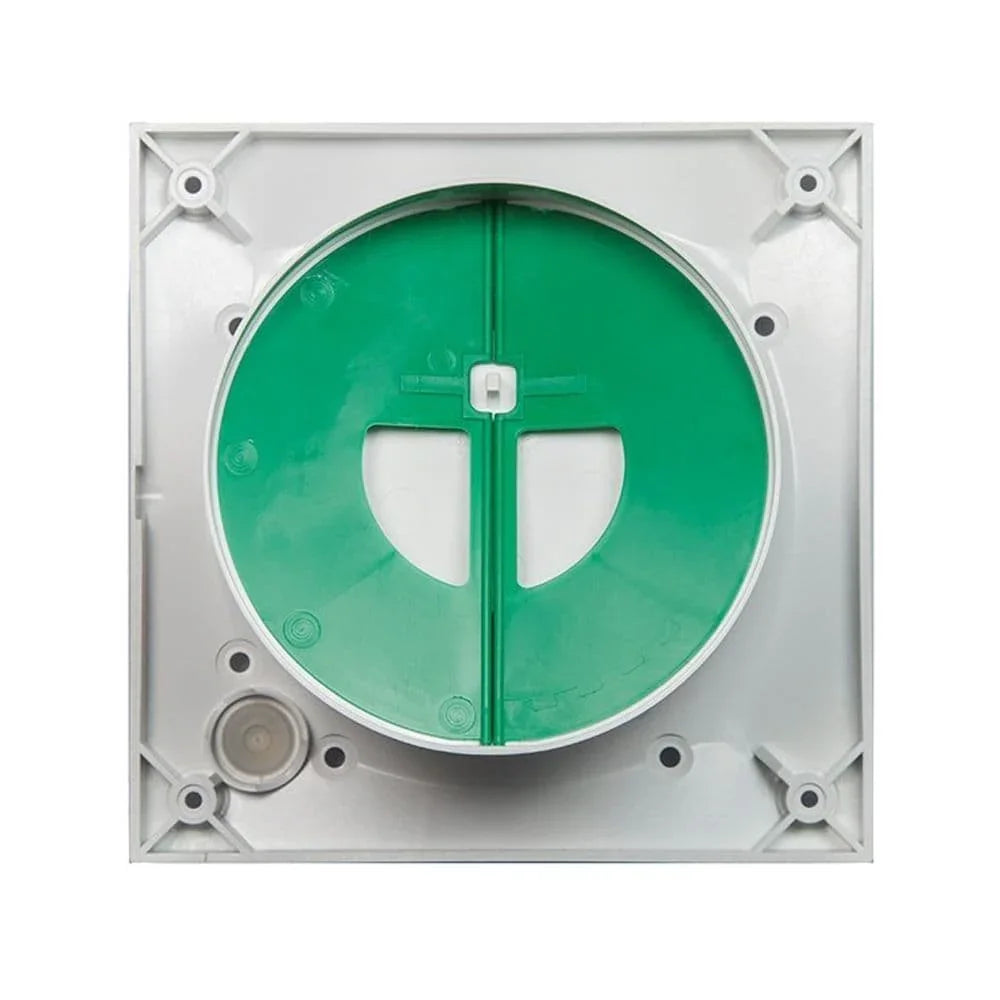

• Integral flow straightener and back draught flap
• Low specific fan power for SAP assessments
• Clip-on cover for ease of cleaning
• Complies with latest Building Regulations Approved Document F
• Airflow 20.8/25 l/s
• Airflow @ 31Pa, 16.6 l/s
• Axial high efficiency impeller
• Wall/ceiling mounting
• Sound pressure 25/30 dB(A) @ 3m
• Adjustable timer (minutes) 6, 10, 15, 21
• Adjustable Humidity 65% - 90% RH
• Power 5/9 watts
• SFP 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40° Celsius

3 Years
