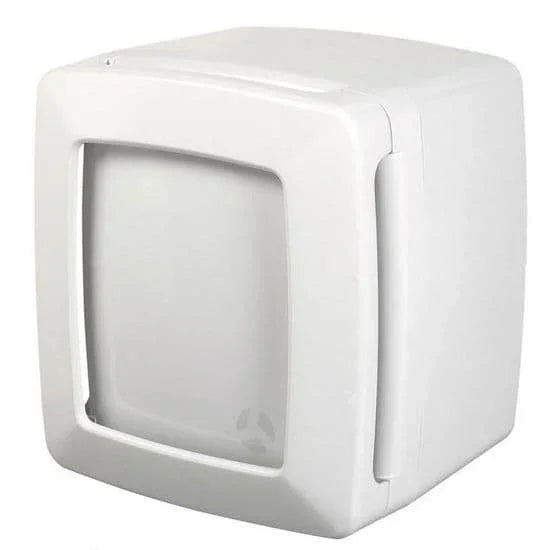

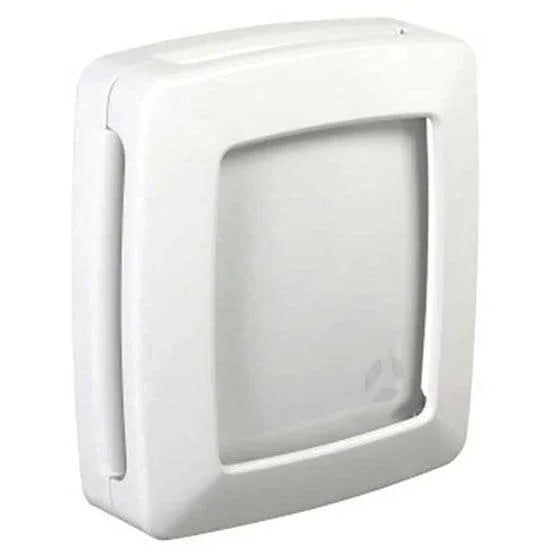

Airflow Loovent ECO T Centrifugal Fan with Timer - 72684305

Overview

The Airflow Loovent ECO is a compact energy efficient centrifugal fan designed for use in bathroom zone 3, toilet, utility room and kitchen. Replacing the now 40 year old original Loovent - one of the most reliable extractor fans available - the new ECO version is offered as a two speed unit and operates at just 12w on full power. ..and less than 4w on the lower setting.

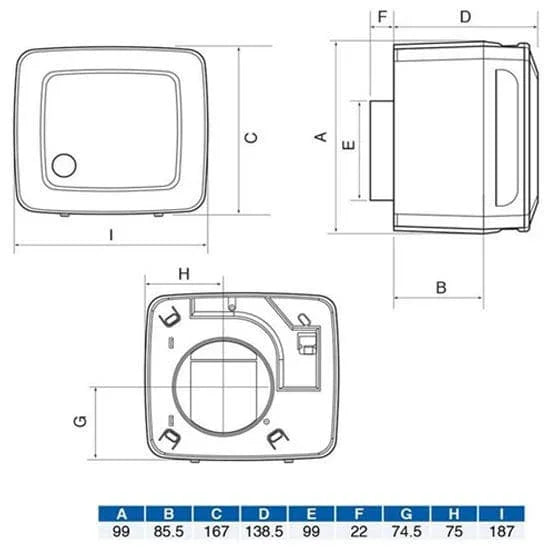

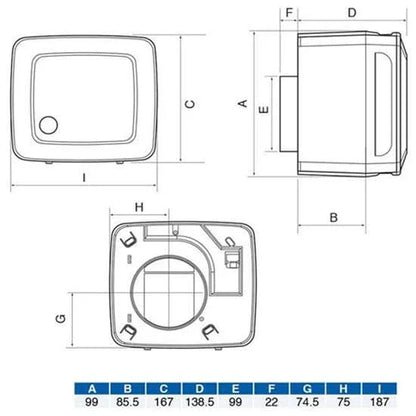

With a 4 inch centrifugal impeller the Loovent ECO sucks an incredible 110m3/hr. Considerably more powerful than any 4 inch axial fan, this is even more impressive when considering its compact size. Indeed at just H167 x W187 x D138 it has the smallest footprint of any fan in its class. It may be mounted surface or recessed (see image), on the wall or ceiling in either portrait or landscape orientation.

The Loovent is ideal for ducted situations and maintains an extraction rate of 15L/s over 6m of flexible ducting including two 90 degree bends and thus meets the requirements of the Domestic Ventilation Compliance Guide. It looks great and has an easy clean front fascia to keep it looking like new.

The 72684305 Loovent ECO T model features an over run timer to ensure all steam is extracted. The over run period may be set between 2 and 45 minutes. It also offers an innovative optional 2 minute delay, to prevent the fan operating which is ideal for quick visits to the bathroom or toilet.

Key Features

• Powerful 2 Speed Centrifugal Fan – up to 31l/s
• Compact Design – smallest footprint in its class
• Ideal for New Build & Refurbishments in toilets, bathrooms, en-suites and utility rooms
• Surface or recessed, portrait or landscape
• Simple replacement of existing Loovent – same mounting and spigot position
• Economical to operate – from 2.8 watts
• Very quiet running fan - from 29 dB(A)
• Low SFP - complies with current Building Regulations
• IPx5 - Install in Zone 1 or 2
• Optional 2 minute delay start function on Intermittent versions - ideal for those quick visits
• Adjustable run on timer between 2 and 45 minutes
• Pull Cord to boost/ override
• Auto shut off sensor for added safety
• Longer Life ball bearing motor for more reliable operation
• Easy to clean wipe clean cover keeps the fan looking like new
• Ideal for ducted installations - maintains 15l/s over 6m of flexible ducting incl 2 x 90 degree bends ( meets requirements of Domestic Ventilation Compliance Guide)
• Modular design makes first and second fit quick and easy
• Universal voltage - use internationally
• Timer, Humidity Timer and Motion Sensor Timer versions
• SAP Appendix Q approved dMEV versions

5 Years
