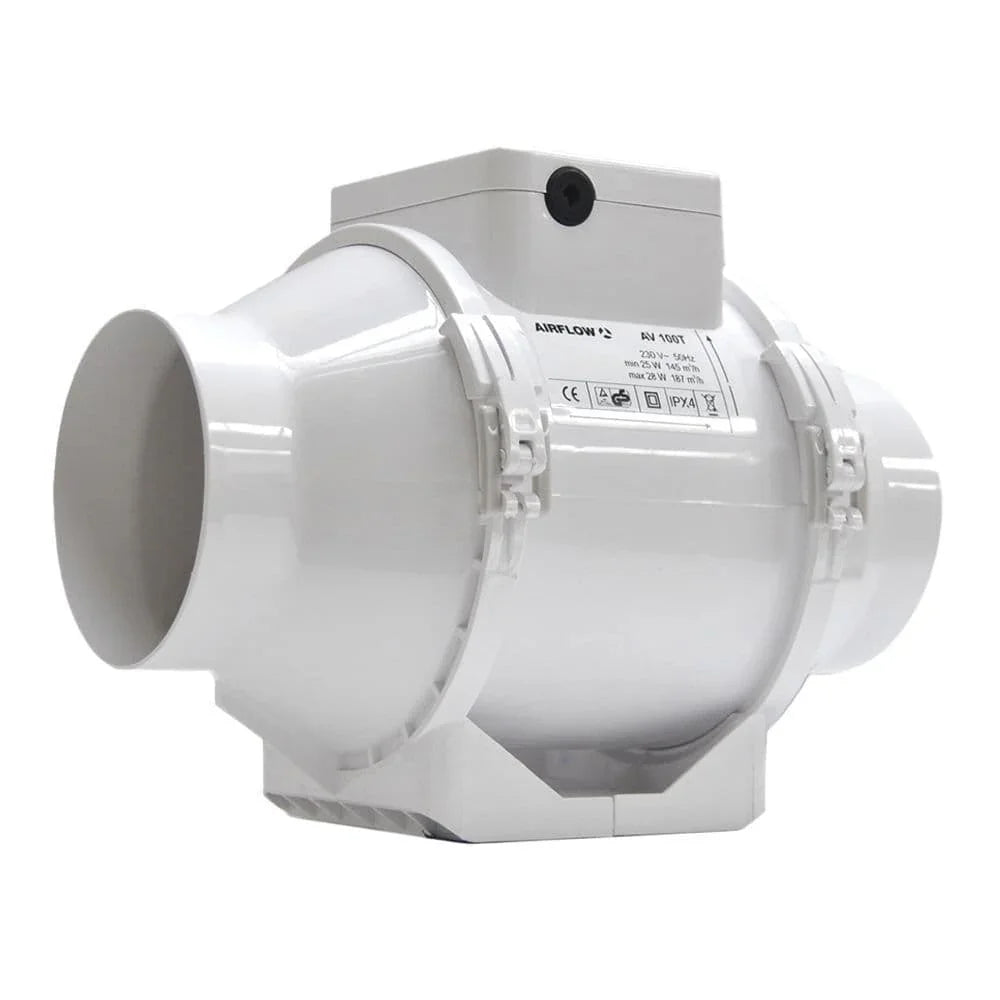

Airflow AV100 Aventa 4 Inch 100mm Inline Fan - 9041085

Overview

The Airflow AV100 is designed for residential applications requiring remote extraction from the bathroom including zones one and two. The AV100 is installed in the ceiling void above the bathroom, away from the wet zones with only a plastic grille, connected by ducting, visible in the bathroom.

It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels. The inlet/outlets are compatible with flexible and rigid pipe runs up to 3m either side of the fan (6m in total).The AV100 may be operated manually from a remote switch, lighting switch or, in specialist installations, a two speed, three position switch (off/low/high)

Key Features

• Quiet and powerful mixed flow fan for use with up to 6m ducting
• 2 speed operation with basic switching or adjustable timer models
• High performance up to 187 m3/hr
• Remote mounting in lofts and cupboards
• Double-up Two fans in series double the pressure
• Two fans in parallel double the flow
• Thermally protected motor
• Complies with the latest Building Regulations ADF 2006
• Mounting bracket supplied with a range of optional ventilation accessories
• 3 Year "no quibble" warranty
• Quality assured to ISO9001

3 Years
