Overview:

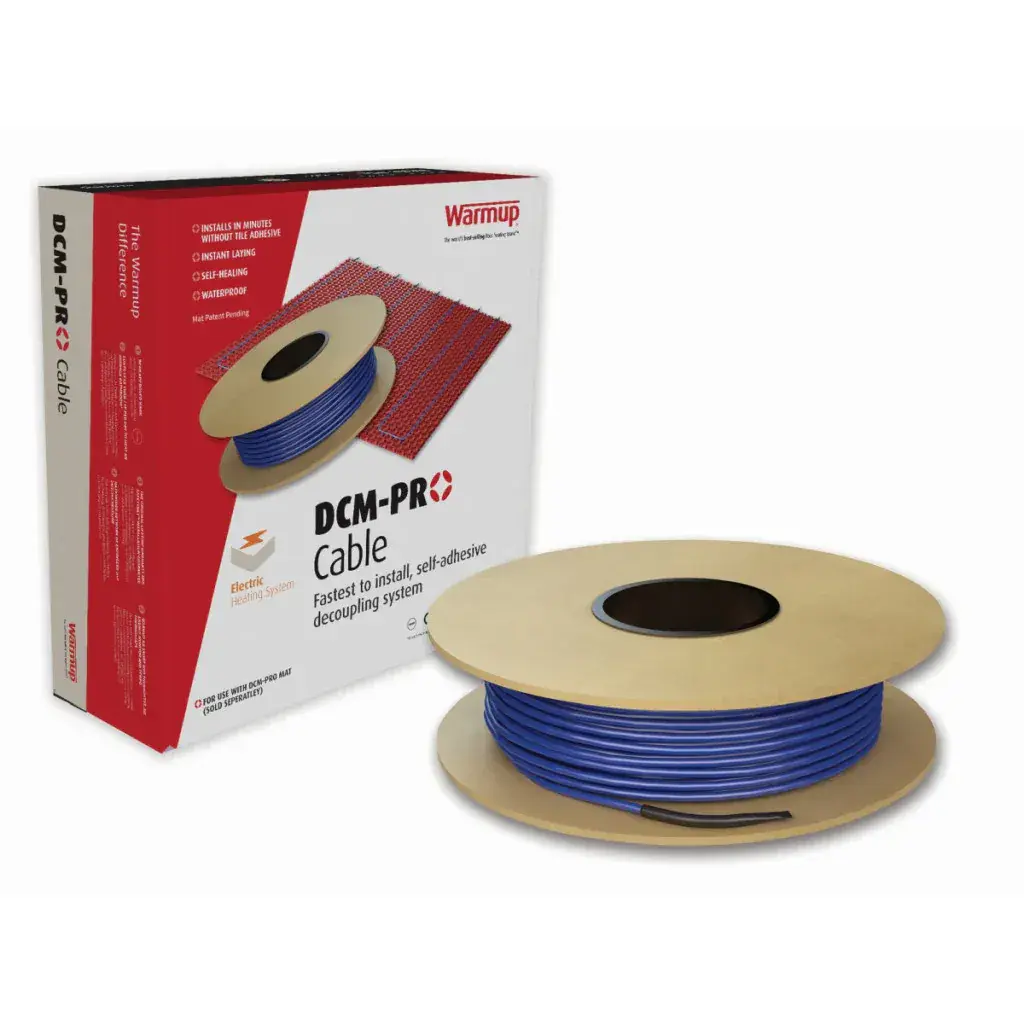

The Warmup DCM-PRO cable is designed for installation with the DCM-PRO Heated Decoupling Mat.

The 4.5mm thick DCM-PRO cable clips into the castellations of the DCM-PRO mat. No tools are required when installing the cable into the mat. It is easily installed by running your thumb along the top of the cable to guide it into the castellations.

When loosely laying the DCM-PRO cable on the floor, maintain a consistent cable spacing of no less than 60mm to achieve  230w/m² and no more than 120mm for 115w/m². Uniform spacing is essential for even heating throughout your space.

Key Features:

• Operating voltage: 220-240V: 50Hz
• IP Rating: IPX7
• Colour: Blue
• Thickness: 4.5mm (± 0.2mm)
• Output rating: 150w/m² (3 Castellations – 90mm)
• Inner Insulation: Advanced Fluoropolymer (ETFE)
• Min. Insulation Temp: 5°C
• Connection: 3M Long ‘Coldtail’ Connection
