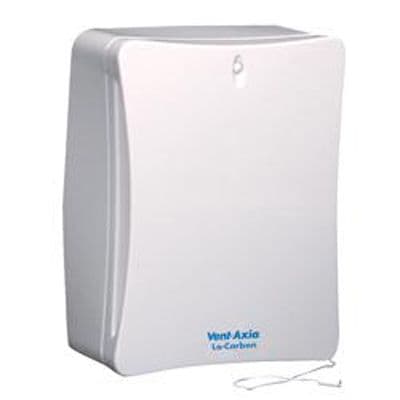

Vent Axia Solo Plus 427485A Low Voltage Centrifugal Extractor Fan

Product Description

Low Voltage Vent Axia Solo
Centrifugal Bathroom Fan with Pullcord

	Rated Five Star by Extractor Fan World (see review)
	Best wall mounted centrifugal fan!

	Great value extractor fan
	Order before 4pm and receive Next Working Day

	For rooms with poor ventilation
	Powerful centrifugal impeller
	Maintains extraction rate on duct runs up to 5m
	Continuous trickle function
	Duct from any bathroom zone

	Washable filters
	Delay start function
	Flush or surface mounted
	Integral pullcord
	Integral back draught shutters

Duct Mode
Speed - Boost
Air Extraction m3/hr : 76 m3/hr
Air Extraction L/s : 21 L/s
Noise : 35dB(A)
Wattage : 8.4w

Speed - High Trickle
Air Extraction m3/hr : 61m3/hr
Air Extraction L/s : 17 L/s
Noise : 33dB(A)
Wattage : 5.3w

Speed - Low Trickle
Air Extraction m3/hr : 39m3/hr
Air Extraction L/s : 11 L/s
Noise : 26dB(A)
Wattage : 3.2w

Features
Trickle Function
Long Duct Runs
Low Noise, Low Energy
12V SELV

Wall Mode
Speed - Boost
Air Extraction m3/hr : 65 m3/hr
Air Extraction L/s : 18 L/s
Noise : 33dB(A)
Wattage : 6w

Speed - High Trickle
Air Extraction m3/hr : 43m3/hr
Air Extraction L/s : 12 L/s
Noise : 27dB(A)
Wattage : 2.9w

Speed - Low Trickle
Air Extraction m3/hr : 30m3/hr
Air Extraction L/s : 8 L/s
Noise : 23dB(A)
Wattage : 2.3w

Dimensions
Height: 263mm
Width: 224mm
Depth: 106mm
Weight: 2.7kg

EFW Review
The Vent Axia low voltage Solo range has been specifically designed for installation in bathrooms with poor or no natural ventilation. Typically, these rooms have no external walls and any fan installed in such a room will sit on the end of a long duct run.

The Solo Plus is a very powerful centrifugal extractor fan. Designed for use in installations requiring long duct runs, such as internal bathrooms or toilets, it can be installed in a straight duct run of up to 5m while maintaining the maximum extraction rate.

Furthermore, the Solo range features a 'Trickle Function' which keeps the room permanently ventilated. Whilst on this low setting it consumes only 5.3w (less than an LED bulb!) and operates silently. The fan will switch from trickle to boost via the integral pull switch or light switch - depending on how you choose to have it wired up.

The Solo range also features integral backdraught shutters and removable, washable filters. On top of all of that it looks great and may be flush mounted!

In our opinion there is no other wall mounted centrifugal fan on the market which comes even close to delivering the great performance and features of the Solo. The fact that Vent Axia have managed to do this at such a fantastic price easily earned it a rating of five stars from us.To Install This Fan...
You will need the following, all available from the accessories list below:
1 x Length of 4inch flexible aluminium ducting. (sold by the metre)
2 x Duct clamps (optional, but recommended)
1 x Fixed external grille - available in white, grey or brown

Specifications

Functionality

Basic - On/Off

Size

4" / 100mm

Type

Centrifugal

Operation

Continuous

Colour

White

Voltage

Low Voltage

IP Rating

IPX7

Guarantee

2 Years

Brand

Vent Axia

Product Code

VEN 427485
