Vent Axia ESP63014 EuroSeries 630mm Heavy Duty Commercial Extractor Fan

Product Description

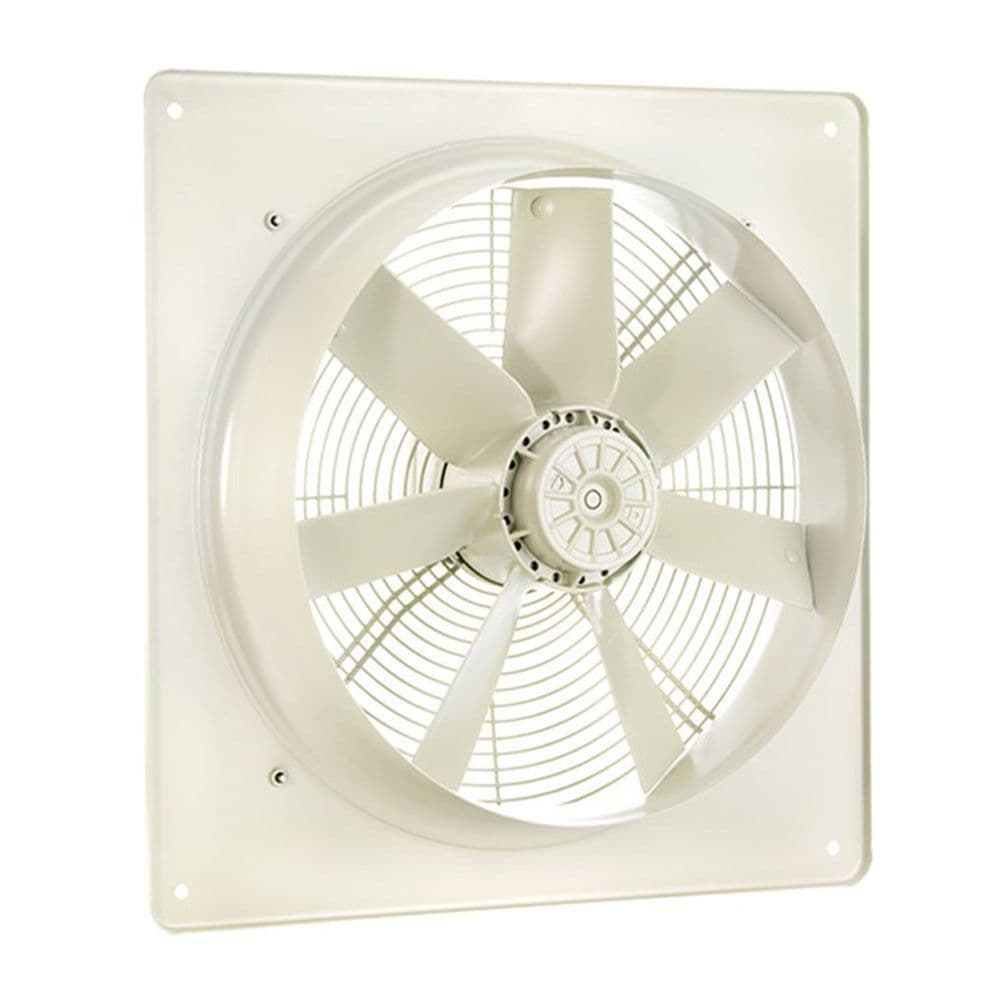

Vent Axia ESP63014 630mm Plate Fan
630mm Heavy Duty Commercial Axial Extractor Fan

These EuroSeries plate mounted axial fans from Vent Axia are seriously heavy duty! This single phase 4 pole fan is fully speed controllable and has an IP54 rated motor making it suitable for small to medium commercial installations. It features a sheet steel supported frame and a die cast aluminium dynamically balanced impeller with inlet finger guard and thermal overload protection.

Specification
- Air Extraction m3/hr: 17,172m3/hr
- Air Extraction L/s: 4770L/s
- RPM: 1320
- Noise: 70dB(A)
- IP54
- Class F Insulated
- Dimensions: 805x805mm
- Spigot Diameter ø: 643mm

Specifications

Functionality
Basic - On/Off
Operation
Intermittent
Brand
Vent Axia
Product Code
VEN ESP63014

Customer reviews

No reviews left yet
Write A Review

Vent Axia ESP63014 630mm Plate Fan
630mm Heavy Duty Commercial Axial Extractor Fan

These EuroSeries plate mounted axial fans from Vent Axia are seriously heavy duty! This single phase 4 pole fan is fully speed controllable and has an IP54 rated motor making it suitable for small to medium commercial installations. It features a sheet steel supported frame and a die cast aluminium dynamically balanced impeller with inlet finger guard and thermal overload protection.

Specification
- Air Extraction m3/hr: 17,172m3/hr
- Air Extraction L/s: 4770L/s
- RPM: 1320
- Noise: 70dB(A)
- IP54
- Class F Insulated
- Dimensions: 805x805mm
- Spigot Diameter ø: 643mm
No reviews left yet
Write A Review

Functionality
Basic - On/Off
Operation
Intermittent
Brand
Vent Axia
Product Code
VEN ESP63014

Customer Reviews

Vent Axia EuroSeries ESP63014 630mm Plate Fan Single Phase 4 Pole

Product Code VEN ESP63014

Usually ships in 3-5 working days
