Vent Axia ESP25032 EuroSeries 250mm Heavy Duty Commercial Extractor Fan

Product Description

Vent Axia ESP25012 250mm Plate Fan
250mm Heavy Duty Commercial Axial Extractor Fan

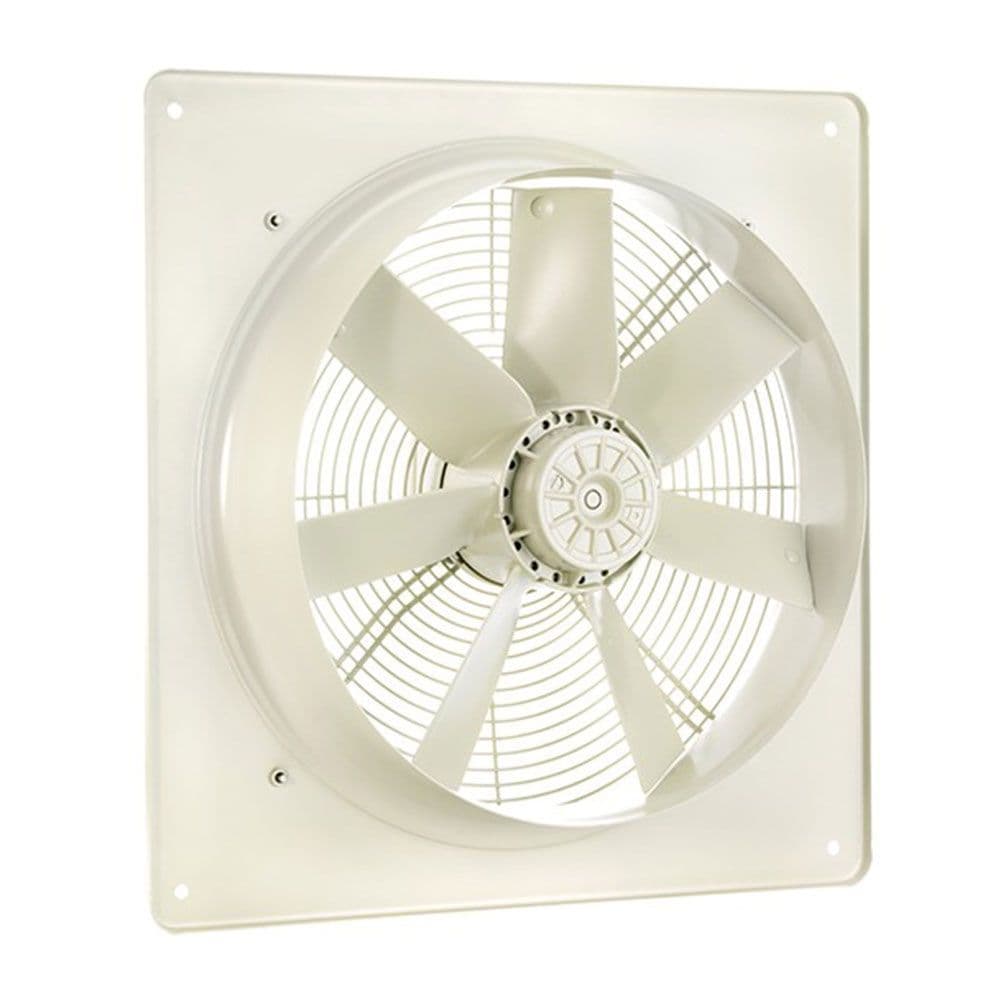

These EuroSeries plate mounted axial fans from Vent Axia are seriously heavy duty! This three phase 2 pole fan is fully speed controllable and has an IP44 rated motor making it suitable for small to medium commercial installations. It features a sheet steel supported frame and a die cast aluminium dynamically balanced impeller with inlet finger guard and thermal overload protection.

Specification
- Air Extraction m3/hr: 1980m3/hr
- Air Extraction L/s: 550L/s
- RPM: 2700
- Noise: 61dB(A)
- IP44
- Class F Insulated
- Dimensions: 370x370mm
- Spigot Diameter ø: 256.5

Specifications

Functionality
Basic - On/Off
Operation
Intermittent
Brand
Vent Axia
Product Code
VEN ESP25032
