Vent Axia ESR80036 Euro Series Roof Fan 800mm Three Phase 6 Pole

Size: 800mm
Air Movement: 4.81m3/s
Noise: 64dB(A)
Three Phase
6 Pole
Wattage: 1.4kw
Amps: 9.8
RPM: 900

The Vent Axia ESR80036 800mm three phase, 6 pole Euro Series roof fan is designed for either kerb or purlin box mounting on a flat or inclined roof with a mximum pitch angle of 30°.

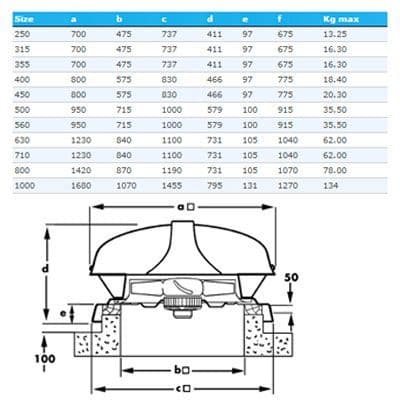

- If Kerb mounting, cross-sectional views must be adhered to when constructing the hardwood kerb.
- The plate fan should be secured inside the kerb with 4 off M12 coach screws (not supplied).
- The roof cowl must be secured to the kerb with the 8 off coach screws used to secure it to the pallet.
- If you intend on mounting on a purlin box, the roof cowl must be secured to the purlin box using 8-off M10 bolts (not supplied) and drilling the roof cowl to suit.
- Purlin trimmers (not supplied) will need to be fitted between the roof purlins in order to support the purlin box.
- The plate fan fits inside the purlin box on the 4 x corner fillets, and should be secured using 4 off M10 nuts and bolts (not supplied).
ESR80036 800mm Vent Axia Euro Series Roof Fan Three Phase 6 Pole
£2,607.74 inc vat
3-5 Working Day Delivery
