Vent Axia ESR50014 Euro Series Roof Fan 500mm Single Phase 4 Pole

Size: 500mm
Air Movement: 1.43m3/s
Noise: 55dB(A)
Three Phase
4 Pole
Wattage: 0.51kw
Amps: 4.3
RPM: 1290

The Vent Axia ESR50014 500mm single phase, 4 pole Euro Series roof fan is designed for either kerb or purlin box mounting on a flat or inclined roof with a mximum pitch angle of 30°.

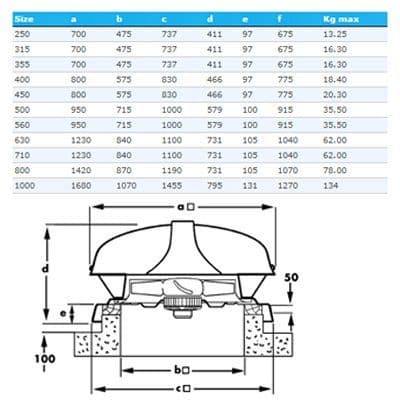

- If Kerb mounting, cross-sectional views must be adhered to when constructing the hardwood kerb.
- The plate fan should be secured inside the kerb with 4 off M12 coach screws (not supplied).
- The roof cowl must be secured to the kerb with the 8 off coach screws used to secure it to the pallet.
- If you intend on mounting on a purlin box, the roof cowl must be secured to the purlin box using 8-off M10 bolts (not supplied) and drilling the roof cowl to suit.
- Purlin trimmers (not supplied) will need to be fitted between the roof purlins in order to support the purlin box.
- The plate fan fits inside the purlin box on the 4 x corner fillets, and should be secured using 4 off M10 nuts and bolts (not supplied).
ESR50014 500mm Vent Axia Euro Series Roof Fan Single Phase 4 Pole
£1,195.40 inc vat
3-5 Working Day Delivery
