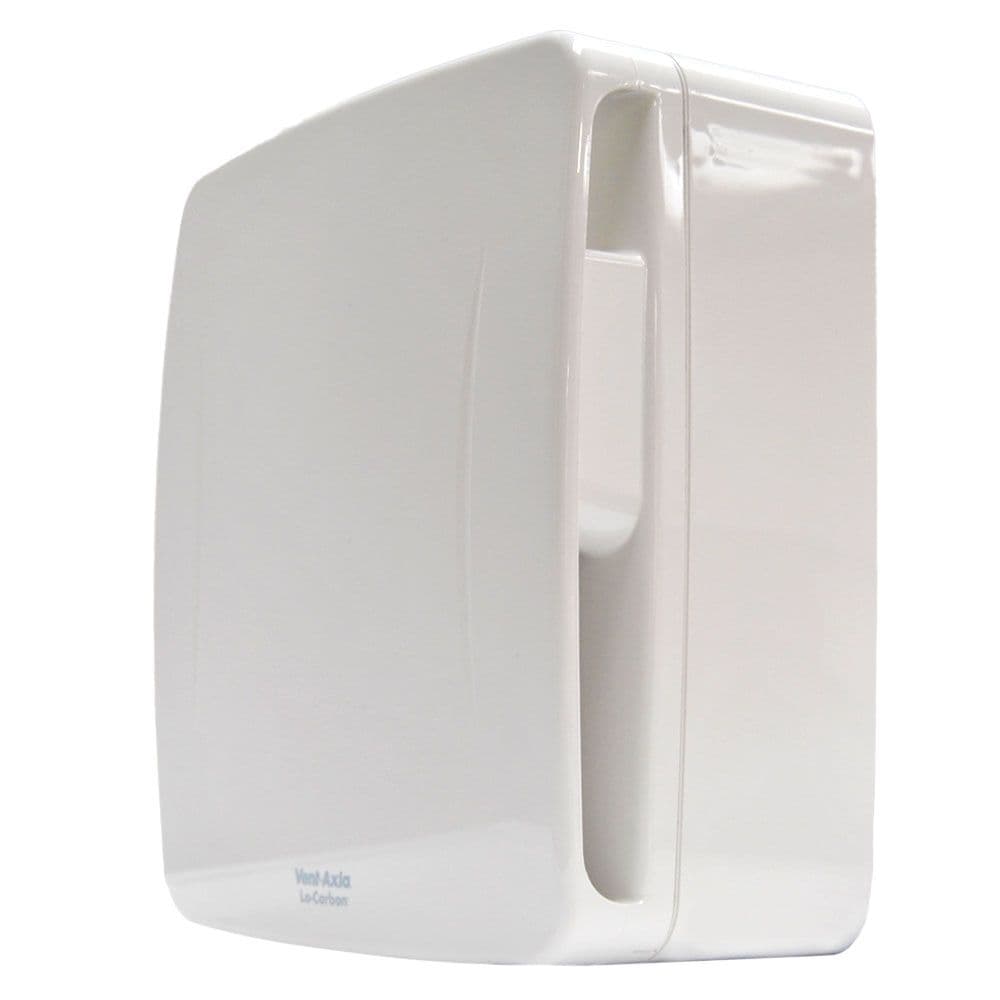

Vent Axia 431615B Centrif Duo Plus DP 2 Boost Extractor Fan + Pullcord
Specification - High Speed (Kitchen Setting)
Air Extraction m3/hr : 220m3/hr
Air Extraction L/s : 61 L/s
Noise : 51.8dB(A)
Wattage : 60w
Specification - Medium Speed (Utility Room Setting)
Air Extraction m3/hr : 130m3/hr
Air Extraction L/s : 36 L/s
Noise : 38dB(A)
Wattage : 41w
Specification - Low Speed
Air Extraction m3/hr : 90m3/hr
Air Extraction L/s : 25 L/s
Noise : 21.5dB(A)
Wattage : 9w
The Centrif Duo Plus DP is a two speed centrifugal kitchen extractor fan with pullcord. The main speed is set on install, depending on which room the fan is being installed in (kitchen or utility room). Switches between off, low and one of the 2 main speeds by pullcord or remote switch.
This great fan is suitable for installation in both kitchens and utility rooms. It exceeds Building Regulation requirements (Document F) in terms of extraction rates for these rooms. You would usually require a 6 fan to meet these requirements, but this is such a powerful 4 centrifugal fan that it can be used in either situation, making it simple to install.
Features:
- 2 Speed centrifugal kitchen extractor fan with pullcord
- 4 spigot (100mm)
- Speed set on install (high for kitchen, medium for utility room)
This kitchen extractor fan has an integral spring-loaded backdraught shutter, and can be installed on either walls or ceilings. It is surface or flush mountable (additional flush mounting kit required, available separately). There is also an optional filter available separately.
Dimensions:
- Height: 261mm
- Width: 231mm
- Depth: 140mm
