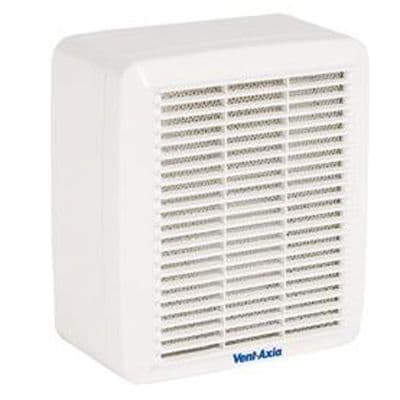

Vent Axia 256420D Centrif Duo HTP Kitchen Extractor Fan & Humidistat & Pullcord

Product Description

VENT AXIA 256420D
Vent Axia Centrif Duo HTP (Two Speed) Kitchen Extractor Fan with Humidistat & Pullcord

Specification - High Speed (Kitchen Setting)
Air Extraction m3/hr : 220m3/hr
Air Extraction L/s : 61 L/s
Noise : 51.8dB(A)
Wattage : 60w

Specification - Medium Speed (Utility Room Setting)
Air Extraction m3/hr : 130m3/hr
Air Extraction L/s : 36 L/s
Noise : 38dB(A)
Wattage : 41w

Specification - Low Speed
Air Extraction m3/hr : 90m3/hr
Air Extraction L/s : 25 L/s
Noise : 21.5dB(A)
Wattage : 9w

The Centrif Duo HTP is a two speed centrifugal kitchen extractor fan with humidistat & pullcord. The main speed is set on install, depending on which room the fan is being installed in (kitchen or utility room). Switches between off, low and one of the 2 main speeds by pullcord, humdistat or remote switch. Separate speeds selectable for humidistat and pullcord. Optional continuous trickle speed available at installation.

This great fan is suitable for installation in both kitchens and utility rooms. It exceeds Building Regulation requirements (Document F) in terms of extraction rates for these rooms. You would usually require a 6 fan to meet these requirements, but this is such a powerful 4 centrifugal fan that it can be used in either situation, making it simple to install.

Features:
 - 2 Speed centrifugal kitchen extractor fan with humidistat & pullcord
 -  4 spigot (100mm)
 - Speed set on install (high for kitchen, medium for utility room)

This kitchen extractor fan has a removable grille, making it easy to clean, and also has a grease filter (washable). It has an integral spring-loaded backdraught shutter, and can be installed on either walls or ceilings. It is surface or flush mountable (additional flush mounting kit required, available separately)

Dimensions:
- Height: 261mm
- Width: 231mm
- Depth: 137mm


Specifications

Functionality
Humidistat
Size
4" / 100mm
Type
Centrifugal
Operation
Continuous
Colour
White
Voltage
Mains Voltage
IP Rating
IPX4
Guarantee
2 Years
Brand
Vent Axia
Product Code
VEN 256420
