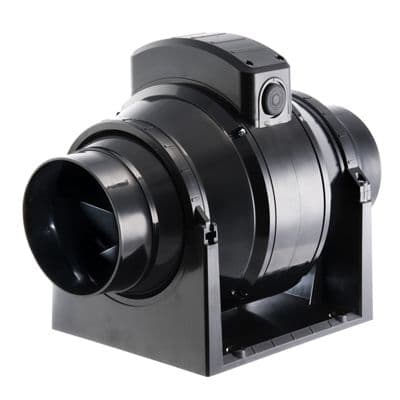

Manrose MF200S 8 Inch, 200mm Inline Mixed Flow Extractor Fan

Product Description

Extractor FanExtremely Powerful - 855m3/hr (!)
Extractor FanDuct from any bathroom zone
Extractor FanExtracts steam before condensing
Extractor FanDuct up to 20m
Extractor Fan30,000hr life
Extractor FanCommercial / large domestic use
Specification High Setting:
- Air Extraction : 855m3/hr (max)
- Air Extraction L/s : 238 L/s (max)
- Noise : 48dB(A) (max)
- Watts : 120w
Specification Low Setting:
- Air Extraction : 648m3/hr (max)
- Air Extraction L/s : 180 L/s (max)
- Noise : 48dB(A)
- Watts : 100w
Dimensions
- Spigot diameter: 197mm
- Overall Length: 300mm
- Overall Width: 250mm
- Height
  (base to top of fan housing): 240mm
The Manrose MF200S is a seriously powerful 8 inch inline extractor fan  designed for use in commercial environments or those domestic installations where particularly large air movement is required. The MF200S benefits from a compact assembly size, very low noise levels relative to its extraction rate and high quality ball bearings which give a guaranteed life of 30,000 hours. The MF200S may be operated at three different speeds, slectable by use of the Manrose METCON speed controller.

An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one  length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffitt or roof.

Inline fans are particularly great for bathrooms as the internal grille may be sited directly above the shower or bath, thus extracting steam at source. With no electrics in the bathroom they are easy to install, saving both electrician and decorating costs and since they are housed in the loft or ceiling void the noise levels are also extremely low.

This fan can also be operated by humidistat by puchasing the 1361 Humidistat & Timer below. To Install This Fan...
You will need the following, all available from the accessories list below:

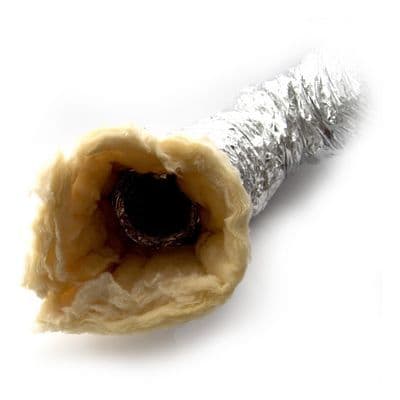

1 x Length of 8 inch flexible aluminium ducting. (sold by the metre)
4 x Large Duct clamps
1 x 12098W 8 inch circular internal grille

Useful Links
What items do I need to install an inline fan in my bathroom?
A Guide to Bathroom Zones
Glossary of Ventilation Terms

Specifications

Functionality
Basic - On/Off
Size
8" / 200mm
Type
Inline
Extraction Rate (l/s)
238
Extraction Rate (m³/h)
856.8
Operation
Intermittent
Guarantee
3 Years
Brand
Manrose
Product Code
MAN MF200S
