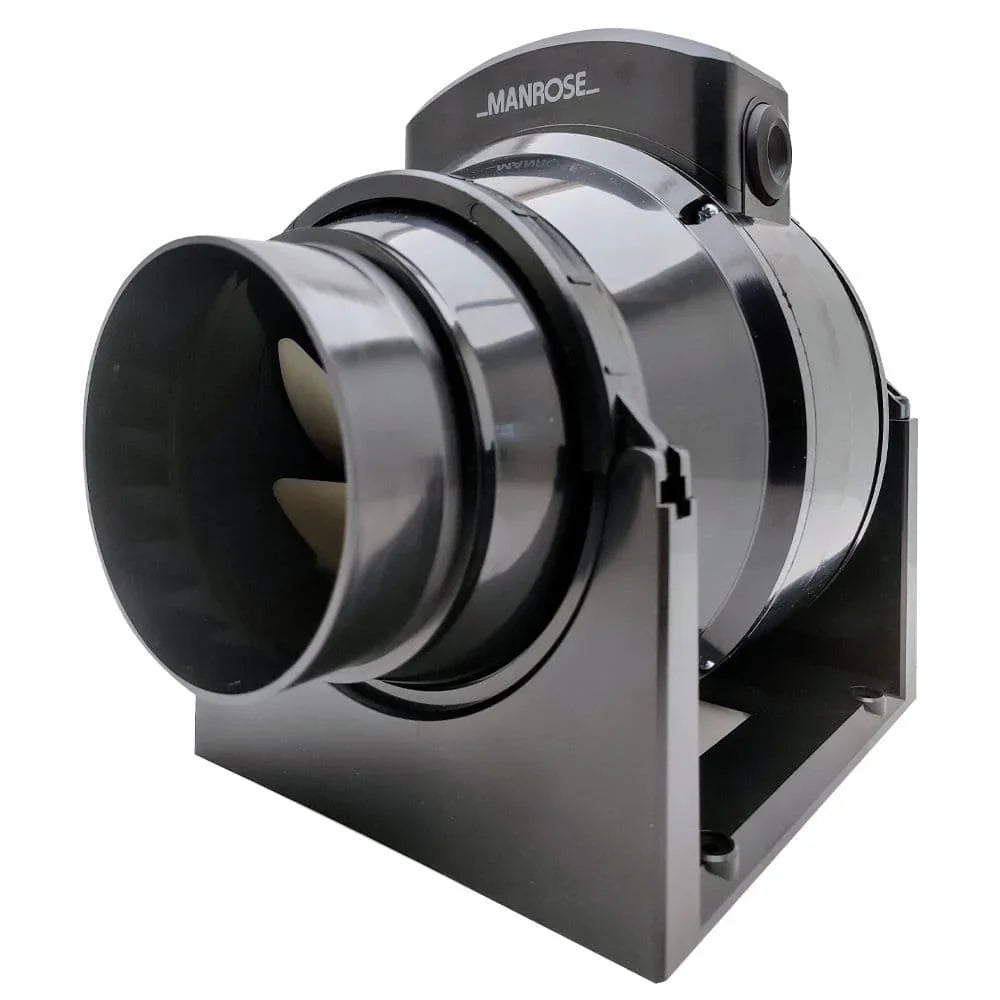

Manrose MF100T 4 Inch Inline Duct Fan with Timer

QT100 Video Watch the MF100 Video Review
Next Day Delivery Next working day delivery

Powerful inline fan with timer Extremely Powerful Mixed Flow Impeller - 245m3/hr!
Mixed Flow Impeller and timer Duct from any bathroom zone
Best Inline extractor fan No electrics in bathroom (See installation diagram)
Inline Ceiling Duct Extractor Fan Extracts steam before condensing
Manrose MF100S Inline duct fan Very Quiet - 24db(A)
Manrose MF100S inline extractor fan review Duct up to 10 metres without loss of power.

Specification High Setting:
- Max Flow Rate: 245m3/hr
- Max Flow Rate: 68 L/s
- Noise : 24dB(A)
- Watts : 25w

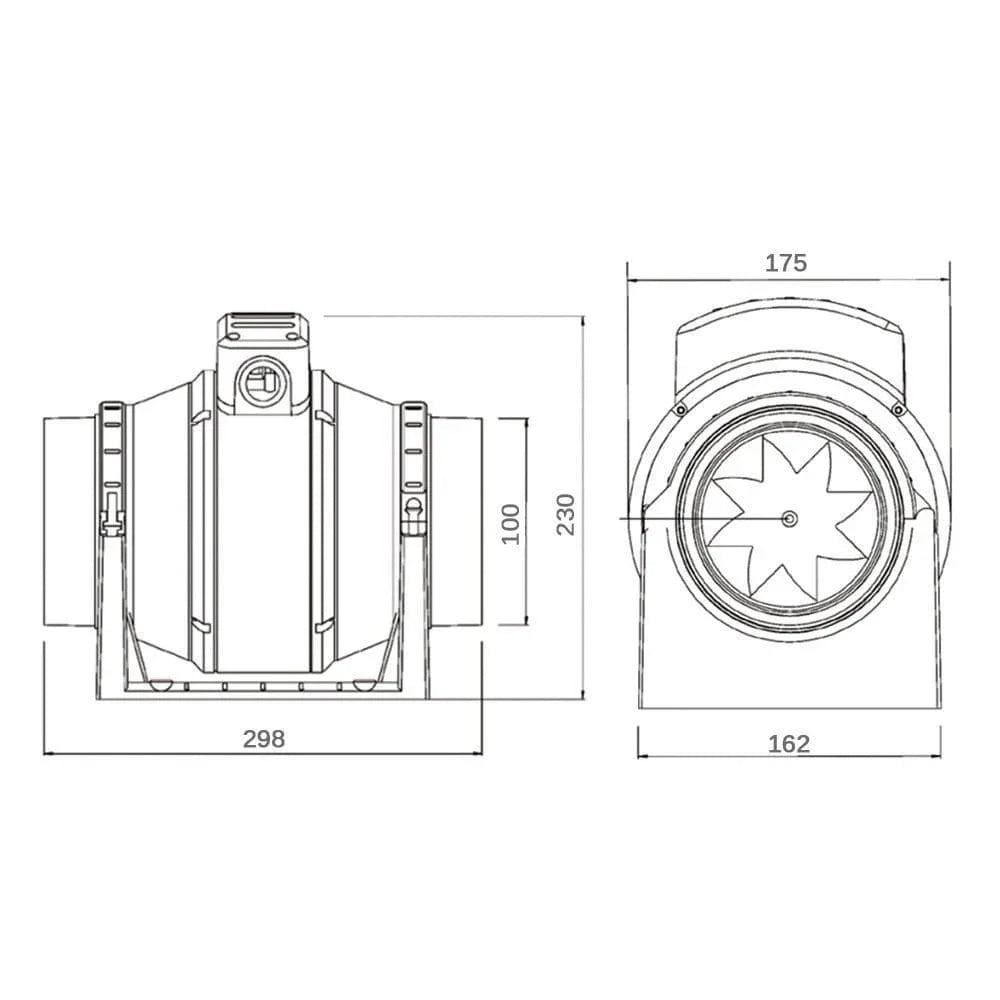

Dimensions:
- Spigot diameter: 98mm
- Overall Length: 298mm
- Overall Width: 168mm
- Height: 180mm

Extractor Fan World Review of the Manrose MF100T

The Manrose MF100T is a powerful inline extractor fan which is ductable up to 12m. An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one  length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffitt or roof.

Inline fans are particularly great for bathrooms because you can site the extraction grille directly above the shower or bath, thus extracting the steam at source. With no electrics in the bathroom they are easy to install, saving both electrician and decorating costs and since they are housed in the loft or ceiling void the noise levels are also extremely low.

This particular model; the MF100T, features an over-run timer which keeps the fan running for a period of up to 20 minutes (set upon install), after power off, to ensure all moisture or stale air is extracted.

Please note, the use of a humidistat is not possible with this model. If you want your fan to be activated by humidity then please order the MF100S and MAN 1361 Remote Humidistat.

Installing the Manrose MF100T Inline Duct Fan with Timer

You will need the following, all available from the accessories list below:
1 x Length of flexible aluminium ducting. (sold by the metre)
4 x Duct clamps
1 x Internal back draught shutter - NVT D494
1 x Circular internal grille - MAN 2100
1 x Energy saver external grille - NVT ESG4
1 x Condensation trap (If the fan and duct are fitted vertically)
Inline Extractor Fan Installation Guide
An inline fan is installed in the loft or ceiling void above the bathroom (or kitchen etc). Ducting is attached to each end of the fan with one length going to an internal grille in the ceiling of the bathroom and the other going to a grille on the external wall, soffitt or roof.

Duct clamps are used to connect the ducting to each end of the fan and to the spigot of each of the grilles. The back draught shutter may be installed anywhere in the exhaust ducting - that is to say, the ducting which runs from the fan to the outside grille, but is usually situated as near to the outside grille as possible. It's worth pointing out, that the backdraught shutter must be fitted the right way round!


Manrose MF100T 4 Inch Inline Mixed Flow Extractor Fan with Timer
RRP: £72.25
£44.89 inc vat
You save £27.36 that's 38% off!
