Overview

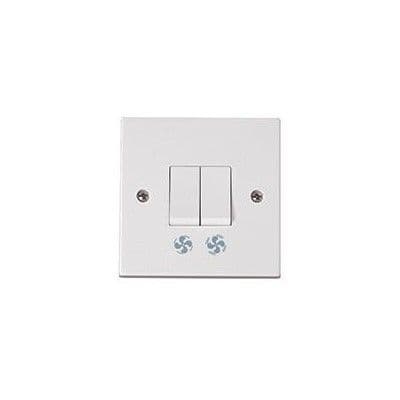

The Airflow QuietAir QT150B combines contemporary design with powerful performance and outstanding energy efficiency. This model is the basic on/off version but can be adapted to a two speed model using the 90000546 two-pole switch.

Key Features

• Quiet from only 35 dB(A)
• Power consumption from only 6 watts
• Two speed options, 220 m3/hr and 260 m3/hr / 61 l/sec and 72 l/sec
• High efficiency impeller with powerful extraction for longer duct runs, including 90 degree bends
• Integral flow straightener and back draught flap
• Clip-on cover for ease of cleaning
• Complies with latest 2010 Building Regulations Approved Document F
• Airflow 50-260 m3/hr, 13-72 l/sec
• Axial high efficiency impeller
• Long-life ball bearings with approx. 40,000 hours life
• Wall/ceiling mounting
• Sound pressure 35/39 dB(A) @ 3m
• Power 6/10 watts
• Low SFP (Specific fan power) 0.09 w/l/s
• Voltage - 230/1ph/50Hz
• Rating IP45
• Max. ambient temperature 40 degree
